Scrap Tire Recycling Equipment

₹ 36.20 Lakh / 70000 70000 Set

MOQ1 Set(s)
key wordswaste tire to oil machine
Material of reactorQ245R
colorgren, gray, as your requirement
Supply TypeManufacturer
Preferred Buyer Location China only

Product Details

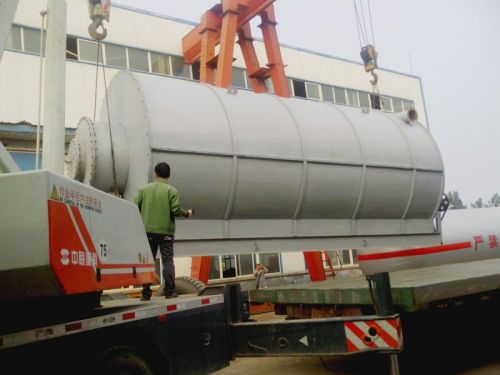

We are offering safety!! x-ray text 100%!! scrap tire recycling equipment with large capacity
our machine can pyrolysis waste tires, waste rubber and waste plastic, processing fuel oil, crude carbon black and steel wires without pollution.
1.products & applications
through the pyrolysis tyres, plastic and rubber, the main products: fuel oil, combustible gas, crude carbon black and steels, which are widely used in hotels, restaurants, bathing centers, power engines, chemical sector and so on.
2. Equipment features
no special requirements for raw materials
operate under atmospheric pressure
automatic decompression
automatic sludge discharge
3.environmental protection
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> emission controller: there is emission controller in the set of plant, it wonâ��t cause dirty dust in the process of pyrolysis
4.technology specialty
no name parameter
1 the raw materials: waste tires, plastics and oil sludge
2 total capacity: 5tday,10tday,20tday,50tday,100tday
3 the size of reactor: 2.2*4.5m, 2.2*6m,2.4*6m,2.6*6m,2.8*6 m
4 average oil productivity: tire:40%-50%,plastic:60%-70%
5 average carbon productivity: 30%-35%
6 average steel productivity: 10%-15%
7 average waste-gas productivity: 5%
8 pyrolysis time: 8 hours
9 discharging time: 3 hours
10 feeding time: 1 hour
5.safety system:
there are two water seal tank in the set of plant, they can prevent gas back streaming and clean the waste-gas to make the plant more safety.
there are safety alarms in the temperature gauge and pressure gauge, so when the tempura and pressure is abnormal, the alarms will ring then you could some safety precautions in time.

Additional Information

Payment Terms L/C, D/A, D/PT/T
Port of DispatchFOBqingdao or tianjin
Packaging DetailsDOING Brand Tire to Oil Machine with CE Certification Raw material: old tyre, plastic and rubber. Process principle: high temperature pyrolysis raw material into oil gas, after cooling system oil gas cooling down to liquid oil. 1.Working pinciple: 1. Firstly, the raw material was put into furnace with auto feeder,thenseal the feed inlet system. 2. Secondly, burned the fuel material (coal, or wood, or natural gas, oil ) in the combustion system . The reactor will slowly heat, when the temperature reach around 150 degree Celsius, it will produce oil gas . 3. Oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure ,which will be designed to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much. 4. After finished oil produce ,the temperature of reactor will be down ,in same time ,carbon black will be discharged automatically. 5. Lastly, when the temperature fall to 100 degree Celsius, worker could opened the door of reactor to discharge of steel wire . 6. Then can start to another batch working. 2.Each set of equipment are composed by ten parts: a. main engine horizontal type revolving split processor b. Horizontal-fixed distillation Processor c. Feeding-in system. d. Tapping system. e. Central electrically controlled system. f. Condensation system. g. Every oil refining systems... h. fuel gas heating system (waste gas processing system). i. Waste water processing system.. j. Flue dust removal system.. 3.Power Consumption of Pyrolysis Plant Power Consumption of Pyrolysis Plant (for 10 tons) Type Details Fuel Wood 400kg / per batch Coal 200kg / per batch LPG 80kg / per batch Electricity Motor of reactor 3kw / h Draft fan 4kw / h Blower 0.25kw Ã�ï¿½3=0.75kw / h Screw conveyor 4kw/h Labor Requirement For One Batch Labor 4 workers can be divided into 2 groups 4.Information of the Outputs As a result of pyrolysis of wastage tyres one obtains, FUEL OIL (40% to 45%),CARBON BLACK (30% t0 35%),STEEL WIRE (10% to 15%) 5.Purposes of the Outputs Fuel Oil: Oil from this plant can be used as industrial fuel for burning Carbon Black: Crude Carbon Black form this plant is crude, and it can be sold to the brick factory as internal combustion or to the factory needing it as raw materials, such as tyre, shoe, cable and sealant companies Steel Wire: It can be sold to the iron and steel company directly 6.Profit analysis Take waste tire oil refining equipment processing 10 tons for example No. Item Cost of Per Batch 1 10 tons of waste tires 10TÃ�ï¿½USD236/T=USD2360 2 0.4 tons of coal 0.4TÃ�ï¿½USD126/T=USD50.4 3 Water and electricity 200Ã�ï¿½USD0.16=USD32 4 Workers 4Ã�ï¿½USD16=USD64 5 Total Cost USD2506.4 NO. Item Income 1 Crude Oil 10TÃ�ï¿½45%Ã�ï¿½USD709=USD3190.5 2 Carbon Black 10TÃ�ï¿½35%Ã�ï¿½USD82=USD287 3 Steel Wire 10TÃ�ï¿½13%Ã�ï¿½USD34=USD450 4 Gross Profit USD3927.5 5 Daily Net Profit USD3927.5-USD2506.4=USD1421.1 6 Monthly Net Profit USD1421.1Ã�ï¿½25=USD35527.5 7 Yearly Net Profit USD35527.5Ã�ï¿½10=USD355375 1. Extraction Rate Fuel Oil: 48%-55% Crude Carbon Black: 30%-35% .
Delivery Time15days
