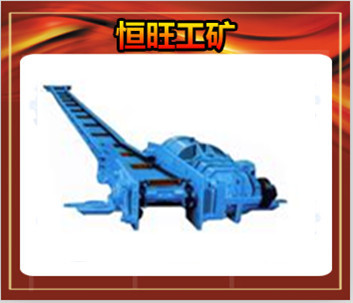

Scraper Conveyor

We are offering scraper conveyor.
1.the fuselage short, easy to install.
2. Can double as coal winning chance the orbit.
3. Can reverse running, easy to handle bottom chain accident.
4. Liquid can the night stand front of the fulcrum
coal, waste rock, or other material can withstand impact, hit, hit a external force, pressure, etc. Can meet the needs of the coal mining working face floor uneven, bending over time, can withstand the vertical or horizontal direction of bending. The fuselage short, easy to install. Can double as coal winning chance the orbit.
Technical parameters
　　　throughput (80 th)
　　　design length (m) 100
　　　0.88 chain speed (ms)
　　　the motor
　　　motor model jdsb - 30
　　　rated output (kw) of 30
　　　rated voltage (v) 380660
　　　rotational speed (rmin) to 1470
　　　the central groove
　　　size (length x width x height) of 1200 x 420 x 150 mm
　　　horizontal bending (°) 3 vertical bending (3 °)
　　　quality of each section (75.65 kg)
　　　scraper chain
　　　14 x 50 mm phi b round link chain specifications
　　　circle the chain number 2
　　　scraper chain center distance 315 mm
　　　scraper spacing is 800 mm
　　　round link chain breaking load 190 kn
　　　link breakage load 170 kn
　　　scraper chain unit mass of 14.2 kgm
　　　type and double chain
　　　reducer ratio 22.245
　　　tight tight chain chain type friction type
　　　uninstall the way end discharge type
