Screen Printers

We are offering screen printers

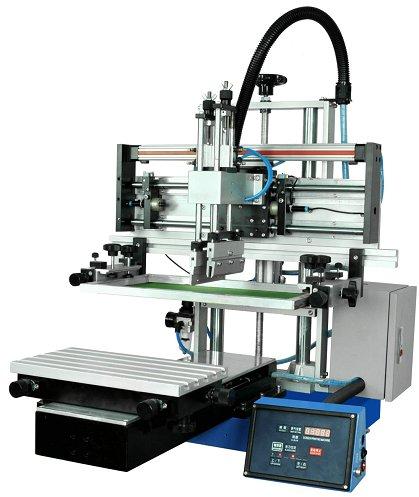

it is a mini pneumatic-drive flat screen printing machine. Front and back pneumatic-drive constructure design, it’s very convenient to put and take products. It can’t restric by the space of screen frame and worktable. It’s very suitable for printing logo on the surface of silicon rubber keypads, mobile key, and small mobile lens.
Feature&specification
1. Scm ic coordinate light touching panel to complile action programming
2. Auto 4-digit counter built-in, counting printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Distyle vertical constructure, high precision, steady operation
5. The transeversa stroke can be adjusted, spacing by taiwan electronic switch
6. The angle of scraper and ink covering blades can be adjusted randomly
7. Installing scraper constant pressure equipment to make sure pressure is steady when printing
8. You can regulate work-table back and forth or right and left, and then fastening it
9. You can regulate screen frame back and forth, right and left or level orientatio
10. T-solt worktable, convenient to install mould
11. Installing cec oil buffer on up and down, left and righ to avoid printing shock
12. The machine is running fastly, steably and lower noise.
13. Action model option: fully automatic | semi-automatic | manual
14. Start-up method:panel | foot switches
15. Scraper pressure controller:by pressure regulating valve
16. Vertical driving style: pneumatic
17. Transeversa driving style: pneumatic
18. Maxium printing area: 200*300mm
19. Transeversa stroke: 350mm
20. Vertical stroke: 125mm
21. Worktable size: 250*450mm
22. Max height of printing products: 80mm
23. Pneumatic-drive vertical stroke: 300mm
23. Printing workstation: 1pc
price terms : fob shenzhen or guangzhou
payment terms : western union ,t/t or l/c
packing : wooden case
lead time : within 3 days
standards certificate : iso9001-2000,ce
machine fittings:
1.one aluminium screen flame
2.one manual in english
3.one set of tool
