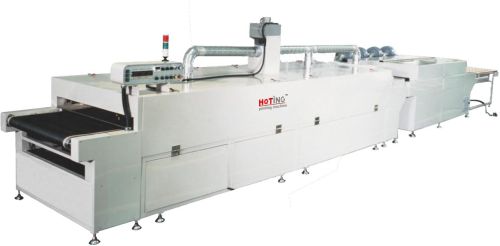

Screen Printing Conveyor Dryer, Brand Name : Hoting

This conveyor dryer suitable for drying Tshirt, fabric, garments, paper, etc after printing.
Specification：
1. Setting to prevent conveyor belt deviation.
2. Heat insulation dual structure to prevent fracture
3. Temperature distribution check alarm device
4. Continuous thermal cycling to perfect the temperature distribution.
5. Special made efficient infrared radiator
6. Double safety circuit protection design
7. High sealed degree, low thermal output
8. Maximize the efficiency of the far infrared use
9. Low cost effective operation
Optional：
1.Conveyor belt cleaning head
2.Double housing set
3.Cooling device
4.Dust remove device
5.Static remove
Parameter:
Model
DIR-600
DIR-800
Max. temperature
50 ~ 180°C
Heater
I.R Heater & Fin Heater
Cooling way
Forced Air-Cooling Type
Conveyor belt
650mm
850mm
Conveyor speed
2 ~ 20mmin
Temperature control
P.I.D System(Digital)
Power
220V X 3p X (customized)W
★ Special specification can be made for customized size.
