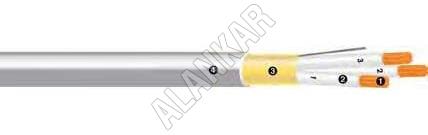

Screened Control and Instrumentation Cable

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Screened Control and Instrumentation Cable (250V), which we provide, is manufactured under the guidance of experts. We are among the reliable Manufacturers, Suppliers and Exporters of Screened....

View More Details

Send Enquiry

Company Information

Alankar Cable Industries

Shalimar Bagh, Delhi

View Number

Member Since 17 Years
Nature of Business Retailer
Year of Establishment 1971

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Screened Control and Instrumentation Cable (250V), which we provide, is manufactured under the guidance of experts. We are among the reliable Manufacturers, Suppliers and Exporters of Screened Control and Instrumentation Cable, located in New Delhi. We provide these Screened Control and Instrumentation Cables at reasonable rates.
Applications

For fixed installation in most areas and on open deck in ships, especially when lightweight cables are needed
If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

Highlights

Minimum recommended installation temperature -15 ^oC
Lowest operation temperature -40 ^oC
Core Identification : black numbers on white base
Identification : Lot number, cable type, cable size, voltage, temperature, standards, production month, manufacturer's name and meter marking printed on the sheath

Main Characteristics

Rated Voltage	150/250V (300V)
Maximum Conductor Temperature	+ 90^oC
Flame Retardant	IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A
Halogen Free	IEC 60754 series
Smoke Emission	IEC 61034 series

Specifications

LKAM-HF 250V	Number of conductors & cross-section n x mm²	Nominal outer diameter mm	Approximate weight kg/km	Current rating A	Min. bending radius fixed installation mm
Part number	Number of conductors & cross-section n x mm²	Nominal outer diameter mm	Approximate weight kg/km	Current rating A	Min. bending radius fixed installation mm
26382	2x0,75	6,5	50	11,3	25
26383	3x0,75	7,0	60	9,8	30
26384	4x0,75	7,5	75	8,9	30
26385	5x0,75	8,0	85	8,3	30
26386	7x0,75	8,5	110	7,4	35
26387	10x0,75	11,0	160	6,6	45
26388	12x0,75	11,5	180	6,2	45
26389	14x0,75	12,0	200	5,9	50
26390	16x0,75	13,0	235	5,6	50
26391	19x0,75	13,5	265	5,3	55
26393	24x0,75	16,0	335	4,9	65
26394	27x0,75	16,5	365	4,7	65
26395	32x0,75	17,0	415	4,5	65
26396	37x0,75	18,0	470	4,3	70
