Screw Capping Machine

Get Latest Price

Electrical Motor**1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine
Case Dimension1200 mm (L) x 950 mm (W) x 1600 (H) Approx.
Change parts requiredCap Die if cap diameter change.
Overall Dimension1000 mm (L) x 720 mm (W) x 1400 (H) Approx.
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Yogesh Pharma Machinery Pvt. Ltd

Vatva, Ahmedabad, Gujarat

View Number

Member Since 22 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

No. of sealing head1 Nos.
Overall Dimension1000 mm (L) x 720 mm (W) x 1400 (H) Approx.
Net Weight200 Kgs. Approx.
Output/Hour*1000 to 2400 Containers
Electrical Motor**1 HP / 440 Volts / 3 Phase / 50 Hz (Four wire) For Main Machine
Change parts requiredCap Die if cap diameter change.
Case Dimension1200 mm (L) x 950 mm (W) x 1600 (H) Approx.
Gross Weight350 Kgs. Approx.

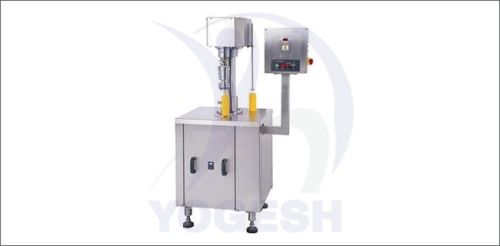

SEMI AUTOMATIC SCREW CAPPING MACHINE

The semi automatic cap sealing machine is fabricated on the welded steel frame. The steel frame is enclosed with the stainless steel sheet with doors. For the Rotating head the motor is given. The machine seals the cap with proper uniform torque.

HOW IT OPERATES :

The manually filling containers are placed on the machine in such a way that the body and the neck are positioned below the rotating head. The uniform torque is providing to seal the cap.

THE FEATURES :

S.S. cladding or hard chrome plating of all exposed parts.
The S.S. matt finish body, compact and versatile.
In built control panel
Motor for the head movement
The bottle high gauge is adjustable for the quitting.
Quick sealing
Depends on the gauges and sizes of the caps, the sealing
For the different size of the container, no need to change parts.

UTILITY REQUIREMENT :

Electrical Supply : Three Phase + Neutral + Earthing
Electrical Load : 0.75 KW

INPUT SPECIFICATIONS

Screw Cap Specification	Diameter**	18 mm to 56 mm***
Screw Cap Specification	Height**	15 to 20 mm
Container Size**	Round Shape	Ø 22 mm to Ø 100 mm* Respectively height 58 mm to 240 mm* (Height option for other bottle height available)
Container Size**	Flat / Square	15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively height 58 mm X 240 mm (Height option for other bottle height available)
