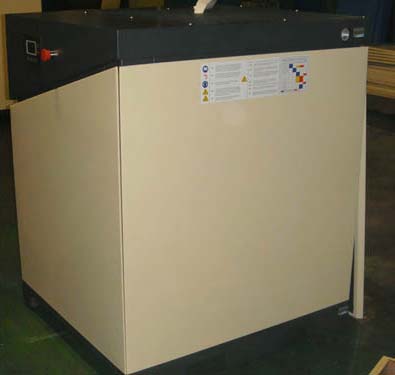

Metal Screw Compressor (XL-20A)

MaterialMetal, Plastic, Etc
FeatureWorld Top Brand Airend, Air Intake Adjustment, Star-delta Starter, CE/UL Certificate For PLC Control Panel
Number Of FlowerAutomatic
Model NameXL-20A
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

Screw Compressor (XL-20A) from XL series screw compressor is our high efficiency and performance-based product. We use Siemens/ China top brand motor on this with a SKF heavy-duty bearing. The....

View More Details

Send Enquiry

Company Information

Taizhou Toplong Electrical & Mechanical Co. Ltd.

Zhejiang Province

View Number

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Screw Compressor (XL-20A) from XL series screw compressor is our high efficiency and performance-based product. We use Siemens/ China top brand motor on this with a SKF heavy-duty bearing. The machine has low noise and can work at high temperatures as well. We are the leading exporter for this product, from Wenling City, Zhejiang. We export the products globally at competitive prices.

Features as follows :

World Top brand airend ,best quality performance;
Air intake adjusted automatically according air consumpting;
Siemens/ China top brand motor,high efficency, Service Factor ,1.15,SKF heavy duty bearing;
Star-delta starter,low voltage start;
CE/UL certificate award to our PLC control pannel,any working condition will be display on the PLC pannel.;
Config big volume Aluminium casted fins cooling radiator,suitable for high temperature enviroment

Specifications

Model		XL-15A	XL-20A	XL-25A	XL-30A	XL-40A	XL-50A	XL-60A	XL-75A/W	XL-100A/W
Air delivery/Pressure		1.6/0.7	2.2/0.7	3.2/0.7	3.6/0.7	5.2/0.7	6.6/0.7	7.3/0.7	10.8/0.7	13.5/0.7
Air delivery/Pressure		1.5/0.8	2.0/0.8	3.0/0.8	3.5/0.8	5.0/0.8	6.2/0.8	7.1/0.8	10.1/0.8	12.7/0.8
(m³/min/MPa )		1.3/1.0	1.8/1.0	2.5/1.0	3.0/1.0	4.5/1.0	5.8/1.0	6.5/1.0	8.5/1.0	11.3/1.0
		1.10/1.2	1.5/1.2	2.3/1.2	2.8/1.2	3.9/1.2	5.1/1.2	5.8/1.2	7.7/1.2	10.0/1.2
Pressure stage		Single
Enviroment tem		-5 +45
Cooling way		Air cooling							Air/ water cooled
Discharge temp		+15
dB(A)		63±2			65±2			68±2		72±2
Transimissi way		Belt driven/Direct driven
Voltage v/ph/Hz		380.440/3/50.60
Power (kw)		11	15	18.5	22	30	37	45	55	75
Start way		Y-
Volume of lubricate		9	9	16	16	16	20	20	26	45
Dimension	Length mm	1170	1170	1310	1310	1380	1450	1520	1800	1800
	Width mm	980	980	1100	1100	1150	1250	1300	1490	1490
	Height mm	1200	1200	1400	1400	1430	1520	1600	1850	1850
Weight kg		465	495	650	680	790	1160	1280	1990	2180
Outlet lnch		G 1”	G 1”	G1 1/ 4”	G1 1/ 4”	G1 1/ 4”	G1 1/ 2”	G1 1/ 2”	G 2”	G 2”
