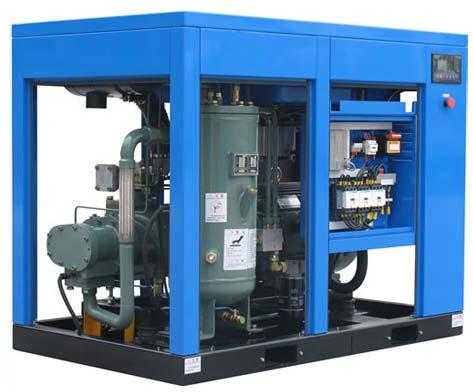

Aluminum Screw Compressor ( XL-75A-350A)

MaterialAluminum, SKF Bearings
FeatureWorld Top Brand Airend, Air Intake Adjustment, Siemens/China Top Brand Motor, Star-delta Starter, CE/UL Certificate For PLC Control Panel, Aluminum Casted Fins Cooling Radiator
Number Of FlowerAutomatic
Supply TypeExporter, Supplier
Preferred Buyer Location All over the world

Screw Compressor (XL-75A-350A) is a high durability product of ours with SKF bearings and a top grade motor. It also won an award for its PLC control panel. The aluminum casted fins in the cooling....

View More Details

Send Enquiry

Company Information

Taizhou Toplong Electrical & Mechanical Co. Ltd.

Zhejiang Province

View Number

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Screw Compressor (XL-75A-350A) is a high durability product of ours with SKF bearings and a top grade motor. It also won an award for its PLC control panel. The aluminum casted fins in the cooling radiator make it suitable for high temperature environment usage. We are based in Wenling City, Zhejiang and are a leading exporter and supplier of the product, offering global delivery.

Features as follows :

World Top brand airend ,best quality performance;
Air intake adjusted automatically according air consumpting;
Siemens/ China top brand motor,high efficency, Service Factor ,1.15,SKF heavy duty bearing;
Star-delta starter,low voltage start;
CE/UL certificate award to our PLC control pannel,any working condition will be display on the PLC pannel.;
Config big volume Aluminium casted fins cooling radiator,suitable for high temperature enviroment

Specifications

Model		XL-75A/W	XL-100A/W	XL-120A/W	XL-150A/W	XL-175A/W	XL-200A/W	XL-250A/W	XL-300A/W	XL-350A/W
Air delivery/Pressure		10.8/0.7	13.5/0.7	16.2/0.7	21.6/0.7	25.2/0.7	28.7/0.7	32.5/0.7	36.8/0.7	42.7/0.7
Air delivery/Pressure		10.1/0.8	12.7/0.8	15.2/0.8	20.1/0.8	24.0/0.8	27.6/0.8	30.8//0.8	34.7/0.8	40.8/0.8
(m3/min/MPa )		8.50/1.0	11.3/1.0	14.3/1.0	17.5/1.0	21.0/1.0	25.3/1.0	28.2/1.0	30.8/1.0	38.1/1.0
		7.69/1.2	10.0/1.2	12.9/1.2	16.0/1.2	18.3/1.2	22.4/1.2	25.1/1.2	28.9/12	34.9/1.2
Pressure stage		Single
Enviroment temperature		-5 +45
Cooling way		Air cooling/water cooling
Discharge temperature		+15
dB(A)		82±2			85±2			88±2		88±2
Transimissi way		Belt driven/Direct driven
Voltage v/ph/Hz		380.440/3/50.60/according requirement
Power (kw)		55	75	90	110	132	150	185	220	250
Start way		Y-/soft starter/inverter start
Volume of lubricate		26	45	70	70	80	80	130	130	150
Dimension	Length mm	2100	2100	2422	2725	2725	2856	2856	3134	3134
	Width mm	1780	1780	1616	1836	1836	1868	1868	2044	2044
	Height mm	1830	1830	1705	1865	1865	1945	1945	1965	1965
Weight kg		2000	2150	2250	3100	3650	4150	4350	4700	5500
Outlet lnch		G 1”	G 1”	G1 1/ 4”	G1 1/ 4”	G1 1/ 4”	G1 1/ 2”	G1 1/ 2”	G 2”	G 2”
