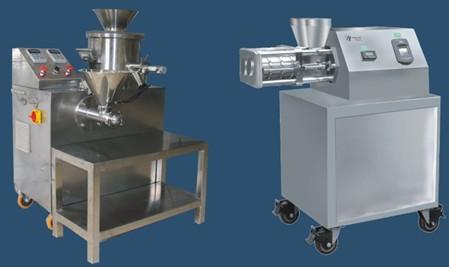

Screw Extruder, Brand Name : Partek

Introduction
soft materials are conveyed into the extrusion bin under the force of screw feeder and after being extruded by extruder and then orifice, compact and irregular cylindrical extrudates are formed.(illustrated below)
structure
the extruder is made up of motor, reducer, gearing, feeding bin, screw feeder, squeezer, orifice, screw cap, controlling system, machine frame, etc
features
1. Continuous work, high efficiency
2. Uniform extrudates, good density, high rate of finished products.
3. Multi-aperture mesh board makes it possible to extrude out 0.5mm-3.0mm cylindrical extrudates.
4. Compared to single screw extruder, radial screw extruder lays less pressure and friction upon the materials and also strengthens the plastic deformability of extruded material. In this way the thermosensitive materials can get instant and afebrile extrusion.
e-10 e-60 e-120 e-200
产量（孔径0.8mm）
output(aperture0.8mm) kgh ≤6 ≤40 ≤80 ≤160
最小投料量
(minimum feeding capacity) kg 0.2 0.5 1.2 2.0
网孔直径
(mesh diameter) mm 0.4~3.5
转速(speed) rmin 5~120
物料收到率
(material yield) % ≥99%
电源(power) vhz 38050
电机功率(motor) kw 1.5 3 4 7
噪音(noise) db ＜45 ＜45 ＜45 ＜50
外形尺寸
(dimension l*w*h) mm 550×450×610 700×360×470 1125×650×1180 1280×750×1250
设备净重(net weight) kg 90 300 660 880.
