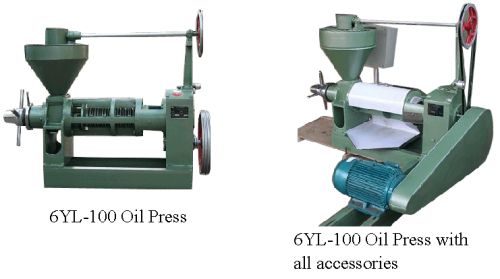

Screw Oil Press Machine

We are offering screw oil press machine. Screw oil press working principle
1.when oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.on the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
Model 6yl-80 6yl-100 6yl-120 6yl-150 double 6yl-185
spiral diameter φ 81mm φ 101mm φ 120mm φ 83x2mm φ 86mm
spiral speed 40-80rmin 60rmin 50rmin 45-85rmin 40-80rmin
power 5.57.5kw 7.5kw 11kw 7.511kw 7.5kw
pump power 0.55kw 0.75kw 0.75kw 0.75kw 0.75kw
heater power 3kw 3kw 4kw 4kw 3kw
cold press 100-150kgh 300-400kgh 350-450kgh 400-450kgh 200-250kgh
hot press 150-200kgh 350-400kgh 400-500kgh 450-550kgh 250-300kgh
weight 800kg 1000kg 1200kg 1400kg 950kg
dimensions (mm) 1900x1300x1600 1950x1350x1700 2000x1350x1700 2000x1400x1750 1950x1350x1650
