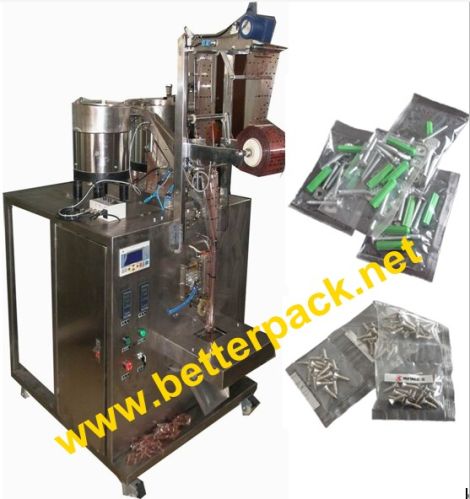

Screw Packing Machine, Screw Counting Machine, Brand Name : Beta

We are offering screw packing machine, screw counting machine.
scope of application
applicable to the counting and sealing package of medicines, foodstuff, chemical material, plastic products, and irregular products of the special industry. Such as candy, tablet, hardware, electronic parts, screws, bolts, nuts, cushion accessories and so on.
specifications
1. Automatic screw packing machine
2.applicable to screw, bolt, nut and so on
3.can counting, bag forming, filling, and sealing packing
technical features
1. The vibrating disk, the linear vibrating collocating unit and the accurate counting control unit which are specially made for the screw sample can ensure the accuracy of each bag.
2. It is a single chip controlling system, with automatic halt, automatic alarm and diagnose when error occurs. And it is safe and conveniently count the workload of the machine.
3. It can automatically display the packing amount and conveniently count the workload of the machine.
4. This machine is a combined type and includes vibrating disk, raster count, discharging part and bag making and packing part, the standard configuration for this machine is two vibrating disks, it is optional to add more so as to fulfill the variety of the packing product.
product specification
power supply 220v, 50hz, single phase
filling range adjustable within a certain range
power 1.1kw
speed 20-70bags/min
film width maximum 200mm
bag size length: 40-160mm / width: 30-100mm
bag sealing style 3 side sealing, 4 side sealing or back sealing
n.w./g.w. approx. 185kg/280kg
dimension l1450*w800*h1650mm
