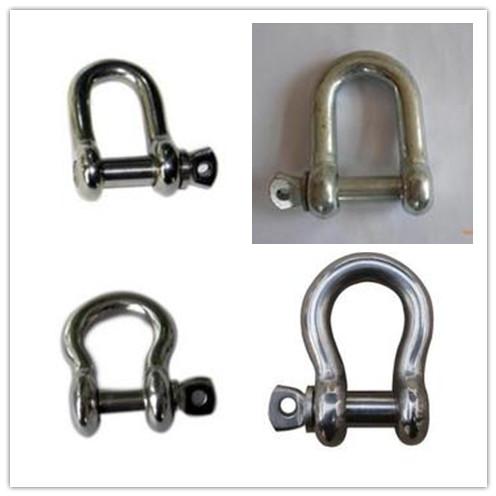

Screw Pin Bow Shackle

We are offering screw pin bow shackle, d-shackle shackle& bow shackle,safety anchor shackle&bow shackle
small volume,light weight,high strength
model rated load(t) size(mm) weight(kg)
a b c d e f g h
12 2 20.6 16.0 47.8 12.7 33.3 30.2 58.7 83.3 0.33
58 3.25 26.9 19.1 60.5 16.0 42.9 38.1 74.7 106.4 0.62
34 4.75 31.8 22.4 71.4 19.1 50.8 46.0 88.9 126.2 1.07
78 6.5 36.6 25.4 84.4 22.4 57.9 53.1 102.4 148.1 1.64
1 8.5 42.9 28.7 95.3 25.4 68.3 60.5 119.1 166.6 2.28
118 9.5 45.0 31.8 108.0 29.5 73.9 68.3 131.1 189.7 3.36
114 12 51.6 35.1 119.1 32.8 82.0 76.2 146.1 209.6 4.31
138 13.5 57.2 38.1 133.4 36.1 92.2 84.1 162.1 232.7 6.14
112 17 60.5 41.4 146.1 39.1 98.6 92.2 174.8 254.0 7.80
134 25 73.2 50.8 177.8 46.7 127.0 106.4 225.0 314.4 12.60
heavy shackle& shackle&chain,stainless steel shackle&roller shackle.
