Screwdriver

₹ 27.15 Lakh / Piece

MOQ1 Piece(s)
Max. head speed2500rpm
style of chuckhydraulic chuck/hydraulic system attached
Otherscentralized lubrication
Feed bin(350 type)（60-350mm）
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Supplier
Year of Establishment 1994

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Max x axis rapid traverse15m/min
Repeated positioning accuracyX/Z 0.012mm
Max. head speed2500rpm
Motor for z axis6N.M servo motor of Japan Yaskawa
Cast30º Slant bed
Control voltage24V（DC）
main voltage380V/50HZ
Max.workpiece length300mm
Motor for x axis7.7N.M(band-type brake) servo motor of Japan Yaskawa
SystermSYNTEC 6TB Systerm
Chip conveyormanual chip conveyor
control spindleservo motor(Japan Yaskawa)
Feeding modeautomatic feeding device controled by system
Feed rate x axis120mm
Positioning accuracyX/Z 0.02mm
Feed rate z axis100mm
style of chuckhydraulic chuck/hydraulic system attached
Feed bin(350 type)（60-350mm）
cnc toolsrow tool type
Max.workpiece diameter16mm
turning processing30W cooling water pump
Otherscentralized lubrication
Vibrating disk(400 type) （1/4 25-70mm） or (500 type)（1/4 25-100mm）
power of motor10N
EnclosureComplet all-around enclosure
Max z axis rapid traverse15m/min
Headstockgrease lubrication

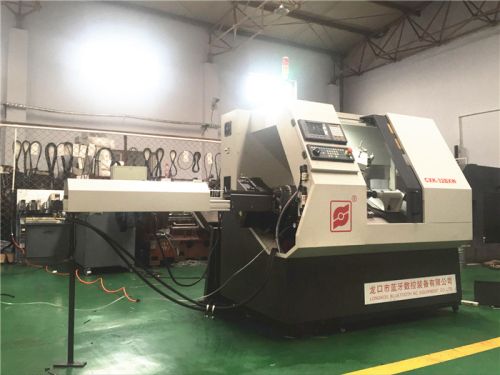

Cxk32 cnc turning and milling composite machine for bits can finish turning,milling etc much more process by once clamping on the one end of the bit.
Advantage:
a) cnc turning&milling machine for bit integrate turning, milling, drilling, and other multi â�� pass process in one, one worker can operate 4-6 sets even more, save much cost for company.
B) cnc turning&milling machine for bit have high efficient, 8-12pcsmin.
C) cnc turning&milling machine for bit have more multi-function,can produce: phillips,flat,torx, pozidriv,squre,hexagonal etc.
