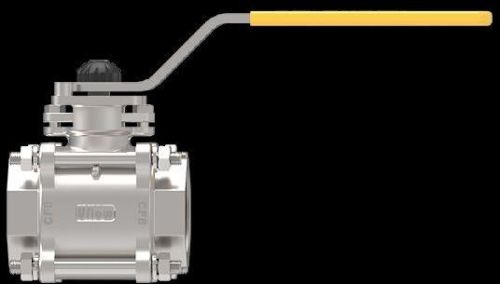

Feature3PC design twinseal ball valve. Full port ball valve. Blow out proof stem. Floating ball design. Hand Lever / Gear / Actuator Operated. Face to Face:- ASME B16.10. ISO 5211 top mounting pad available for easy Uflow make actuator mounting.
Feature3PC design twinseal ball valve. Full port ball valve. Blow out proof stem. Floating ball design. Hand Lever / Gear / Actuator Operated. Face to Face:- ASME B16.10. ISO 5211 top mounting pad available for easy Uflow make actuator mounting.
End ConnectionScrewed end, Socket Weld
SizeDN15 - DN80
Pressure Class150#
Pipe End MaterialCF8 / CF8M / WCB / CF3M
Ball MaterialCF8 / CF8M
Seat Ring MaterialPTFE / RPTFE / CFT / GFT / PEEK
Gland Material:SS304 / SS316 / SS410
Gland Bush Material:SS304 / SS316 / SS410
Design StandardASME B16.11, ASME B16.34, API 598, BS EN ISO 17292, ISO 5211
Face to FaceMFG. Standard
Body MaterialCF8 / CF8M / WCB / CF3M
Stem Seal MaterialPTFE / RPTFE / CFT / GFT / PEEK
Body Seal MaterialPTFE / RPTFE / CFT / GFT / PEEK
Fastner MaterialSS304 / SS316
Stem MaterialSS304 / SS316 / SS410
