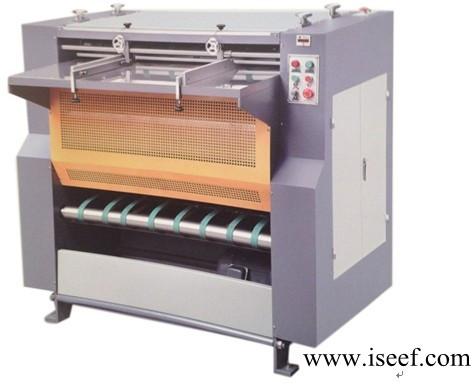

Scroll Grooving Machine

We offer scroll grooving machine .
Description
this machine is special designed for notching v type groove, use for industry-cardboard, ash-cardboard, mdf board and other several of cardboard. It adopts new way of transportation principle , wrap the cardboard on
the entire surface of the roller(the diameter is 60m), it can guarantee the groove more accurately, no deviation and straightly. The machine has the features of high acucracy , fast speed and durable cutting blade.
each cutting blade could move left and right by itself. Double sides position plate are adjustable,
they can ensure the precision. The wheel is used for adjust grooving degree from 80-140 degree.
the counter is used for recording the number of production.
Belt roller , used to adjust the belt tension.
Special use knife grinder, usually grind one piece of cutting blade need 2 minutes only.
performance:
1. after notching , the surface of cardboard is very clean and no dust.
2. the machine is very economization, total power is 3.7kw only and it is little noise.
3. the machine can produce about 1000pcs boxes per hour that feeding by hand , it is very fast.
4. the cutting blade can cut 10000-180000 sheets one time, then you should to sharp the blade and it is takes about two minutes only. We will supply a sharpen machine by free and it is very easy to operation.
5. the cutting degree is adjustable.
6. the machine could groove any thickness from 300gsm-3.6mm and need not to adjust anything.
main technical index
model zg-1000
width of cardboard 100-900mm
length of cardboard 100-900mm
distance of each groove 0-830mm
thickness of cardboard 300gsm-3.6mm
grooving degree 80-140
the amount of groove 9 pieces one time
production speed 10-35mmin
power 2.2kw380v
dimension(l*w*h) 1500*1400*1600mm
weight 1400kgs.
