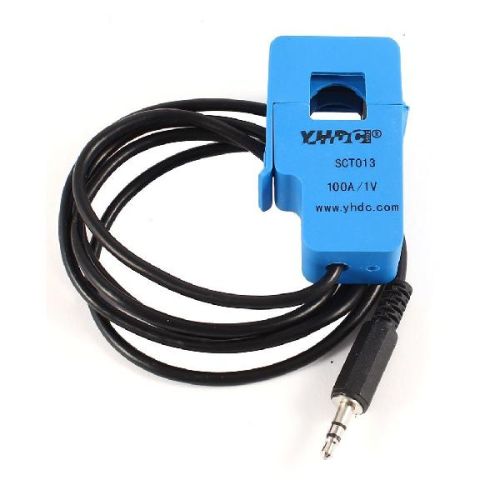

SCT013-000V Split Core Current Sensor AC Current Transformer 100A/1V

₹ 407.25 / Piece

MOQ1 Piece(s)
Packaging Typebule
Output1V
Input current100A
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product features rated input: 0-100a; rated output: 0-1v;material of core: ferrite; accuracy: â±1%; linearity: â�¤0.2%; turns ratio: 1:1800; work voltage: 660v; work frequency: 50-1khz;....

Company Information

Member Since 9 Years
Nature of Business Supplier
Year of Establishment 1992

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Product features
rated input: 0-100a; rated output: 0-1v;material of core: ferrite;
accuracy: â±1%; linearity: â�¤0.2%; turns ratio: 1:1800;
work voltage: 660v; work frequency: 50-1khz; dielectric strength: 3kv;
operating temperature: -25.+70â��; storage temperature: -40..+85â��;
fire resistance: ul94-v0; mounting type: suspension; weight: 78g
product description
characteristics:openning size 13mm*13mm,1m leading wire, standard î¦3.5 three-core plug output. Have two kinds of output type: current output type and voltage output type. Purposeï¼� used for current measurement, monitor and protection for ac motor,lighting equipment, air compressor etc
