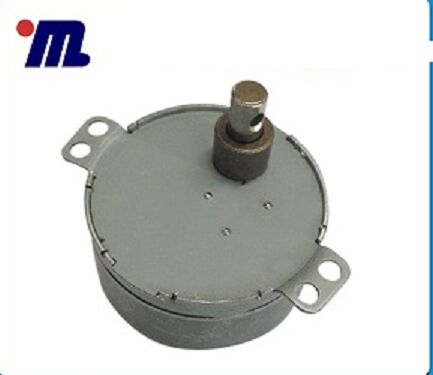

50/60 Hz SD-83-521 AC Motor, Brand Name : SUHDER

₹ 500.50 / Piece

MOQ100 Piece(s)
Frequency50/60 Hz
AC Voltage24VAC,110VAC,220VAC
Brand NameSUHDER
CertificationCE ROHS UL
Supply TypeSupplier
Preferred Buyer Location All over the world

Product Details

Efficiency4W
AC Voltage24VAC,110VAC,220VAC
Speed2-3RPM
Number Of FlowerAC Motor
Brand NameSUHDER
CertificationCE ROHS UL
Country of Origin24VAC,110VAC,220VAC
Frequency50/60 Hz
PhaseSingle Phase
Original MaterialGermany nad Japan Material
Item NameSmall 120V 2-3rpm AC Synchronous Gear Motor SD-83-521, AC Fan Motor
life expectancy5000-8000 hours
RotationCW/CCW/FREE
NameSD-83-521
PortShenzhen

electri motors small 120v 2-3rpm ac synchronous gear motor sd-83-521, ac fan motor

synchronous motor
ac synchronous motor
synchronous gear motor

specification

rated voltage	24vac,110vac,220vac
power consumption	4w
current	100 ma↓
frequency	50 / 60 hz
rotor speed	500 / 600 r.p.m
motor speed	1 – 60 r
direction	cw or ccw or free
temperature rise	below 70â��
ambient temperature	-10â�� ~ +70â��
voltage range	±10% of rated voltage
insulation impedance	dc 500v , 100mω
insulation durability	1,500vac for 1 minute
insulation type	class b
torque	70 kg – cm at 1 rpm

ordering information:
• minimum order:
• basic package: 100 / ctn
• basic carton size: 370 x 370 x 200 mm / 300 x 590 x 135mm
• weight (nw / gw): 12.5 kgs / 13.5kgs
