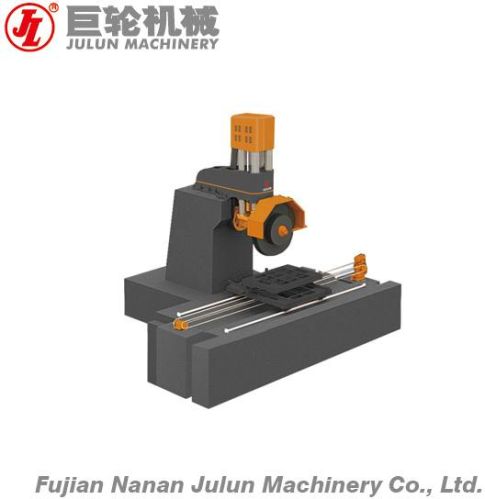

SDC-1600 Multi-blades Saw Stone Cutting Machine, Brand Name : JULUN

Sdc-1600 multi-blades saw stone cutting machine uses large span of four guide column structure, host rigidity, high cutting efficiency, greatly improved blade life and lower power consumption, meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance; especially according to the stone worse environment to design the multi-layer modular sealing device, with waterproof, dust-proof and anti-spill, improve the using life of the machine; quarry table using bilateral gear drive, effectively avoiding the skip deviation of the phenomenon, better slicing precision; the machine with compact structure, easy operation, adopts high-quality materials, especially suitable for cutting domestic granite blocks.
technical data:
model unit sdc-1600
max balde diameter mm î¦1600
blade number p 161822
lifting stroke mm 1000
max processing size(lã�wã�h) mm 3500ã�1300ã�900
water consumption mâ³h 30
power of main motor kw 7590110
total power kw 85100120
dimension(lã�wã�h) mm 8500ã�5500ã�6500
weigt kg 10000
