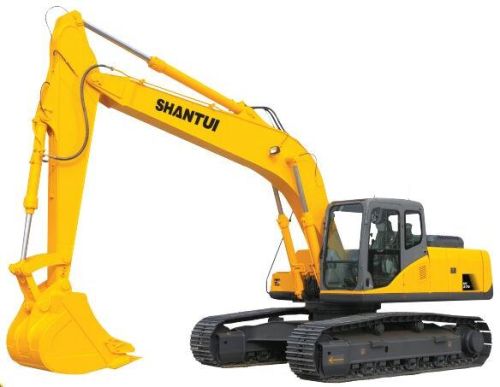

SE270 Shantui Crawler Excavator

The SE270 ramps up the power in our mid-range of excavators. It offers an imported Cummins (B5.9-C) engine that provides a reliable and powerful plant. Shantui`s body design makes maintenance convenient with easy access points.features imported hydraulic parts, negative flow and electronic controls. It is a highefficiency machine due to its state-of-the-art functions of boom confluence and diffluence, swing priority and flux regeneration. Engine Travel System Model CUMMINS B5.9-C Travel motors JEIL, Korea; Variable axial piston motor Type Water cooling, turbocharged, empty enter-cooling Support roller quantities 2×8 Carrier roller quantities 2×2 No. of cylinder 6 Travel shoes 2×49 Bore and stroke 102mm×120mm Travel speed 2.54.5kmh Displacement 5.9L Drawbar pulling force 245kN Power output 133kW2000rpm Grade ability 70% (35°) Ground clearance 495mm Hydraulic System Cab & Control Pump KAWASAKI, Japan Cab All-weather, sound-suppressed Cab and equipped with a heavy, insulated Floor Mat; Front Window can be opened and slid; 6-direction adjustable Seat; LED display, Automatic monitoring, display and warning; cool & hot Air Conditioner Type variable double–piston pump Max. discharge flow 2×234Lmin Max. discharge pressure Boom, arm and bucket 31.9MPa Control Two hand levers and two foot pedals for travel Two hand levers for excavating and swing;Electric rotary-type engine throttle Travel circuit 31.9MPa Swing circuit 25.5MPa Control circuit 3.9MPa Boom
