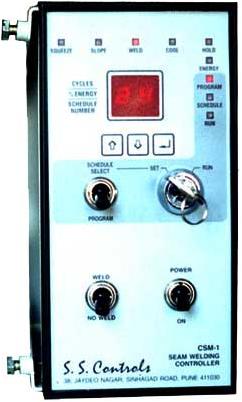

Seam Welding Controllers

₹ 6,000 - ₹ 1 Lakh / Piece

MOQ1 Piece(s)
ConditionGood
Country of OriginPune,Maharasthra
Product NameSeam Welding Controllers
TriggerExternal Normally Open contact of footswitch or limit switch.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 22 Years
Nature of Business Retailer
GST No. 27ABNPV6476F1ZX

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionGood
Country of OriginPune,Maharasthra
OutputGate-Cathode Drive signal to drive a pair of back to back thyristors of any capacity.
Input Supply230V / 415V AC, 50Hz / 60Hz
FeatureCompact user-friendly micro controller based circuitry.
Product NameSeam Welding Controllers
TriggerExternal Normally Open contact of footswitch or limit switch.
Brand NameS. S. Controls

We bring forth high precision Seam Welding Controllers in the national and international markets. The Micro Controller Based Seam Welding Controllers that we supply in the industry are used in Resistance Seam welding machines of any capacity and make. They have compact user-friendly micro controller based circuitry with non-volatile memory (EEPROM) to store up to 15 welding schedules. The key lock switch is provided for SET & RUN mode and WELD / NO WELD switch is also there on their front panel. In addition to this, we are one of the major Resistance Seam Welding Controllers Manufacturers in the country.
Features

Compact user-friendly micro controller based circuitry.

Double initiation foot switch, FS1 operates the solenoid valve and FS2 controls welding operation.

Non-Volatile Memory (EEPROM) to store up to 15 weld schedules.

Easy to program with UP / DOWN and ENTER keys. A two-digit LED display indicates set values. Individual operations within a weld schedule indicated by LEDs.

Key lock Switch provided for SET & RUN mode. WELD / NO WELD switch provided on the front panel.

Timings settable in terms of HALF / FULL cycles of mains supply frequency to achieve better resolution. Precise time and energy control ensures consistent weld quality.

Relay contact output provided to actuate the Motor Drive of the welding machine.

Specifications

Input Supply : 230V / 415V AC, 50Hz / 60Hz

Output : Gate-Cathode Drive signal to drive a pair of back to back thyristors of any capacity.

Compensation : Supply voltage fluctuation compensation. (Output voltage remains within Â± 3 % as against Â± 15% variation in mains voltage).

Trigger : External Normally Open contact of footswitch or limit switch.

Adjustment Of Various Parameters Possible As Per Table :

Squeeze Time	0-99 half cycles
Slope for Weld (W1)	0-9 half cycles
Weld Time	0-99 half cycles
Weld Energy	0-99% Programmable
Cool Time	0-99 Half cycles
Hold Time	0-99 half cycles
