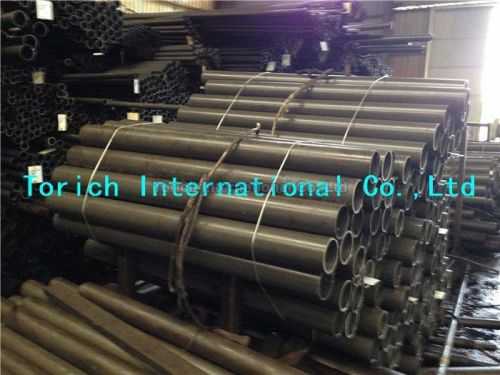

Seamless Drilling Steel Pipe For Geological Exploration

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Located in China, we are a noteworthy Manufacturer, Exporter and Supplier of Seamless Drilling Steel Pipe for Geological Exploration. Conforming to the international quality, the duly checked....

View More Details

Send Enquiry

Company Information

Torich International Co.,Ltd

China

View Number

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 1997

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Located in China, we are a noteworthy Manufacturer, Exporter and Supplier of Seamless Drilling Steel Pipe for Geological Exploration. Conforming to the international quality, the duly checked Seamless Drilling Steel Pipes for Geological Exploration are provided by us in different specifications as per buyer’s discretion. Buyers across the world can obtain our Seamless Drilling Steel Pipes for Geological Exploration at nominal rates.
Details :

Place of Origin - China
Brand Name - Torich
Certification - ISO 9001-2008 ISO 14001 TS 16949 TUV CCS
Model Number - ASTM A519
Minimum Order Quantity - 5 tons
Price - USD 600-1200 TON
Packaging Details - Oil antirust in bundles
Delivery Time - 5-8 weeks work days
Supply Ability - 50000tons per year
ASTM A519 4130 4140 +N Q+T Seamless Drilling Steel Pipe for Geological Exploration
Standard - ASTM A519, ASTM A519 4130 4140 +N Q+T Seamless Drilling Steel Pipe for Geological Exploration
Size range - O.D. -6-350mm, W.T. -1-50mm, L -max12000mm
Applications - For Machinery, Mechanical Engineer
Raw Material - Round Steel Billet from Bao Steel
Production - Hot Piercing→Cold Drawing → Sizing to final dimension

Detailed Product Description :

Material	Carbon And Alloy Steel	Steel Grade	1008 1010 1018 1026 Etc
Size Range	O.D.:6-350mm W.T.:1-50mm L:max12000mm	Applications	For Mechinery, Mechanical Engineer
Shape	Round	Manufacture Techinique	Seamless Cold Drawn And Cold Rolling
Deliver Condition	A.W.H.R. A.W.C.R. S.D.C.R. M.D. S.S.I.D.	Characteristic	Mechanical Tubing

Steel Grade And Chemical Compositions:

Steel Grade and Chemical Compositions:
Steel	C		Mn		P	S	Si		Cr		Mo
Grade	max				max	max	max		min
1008	0.1		0.30-0.50		0.04	0.05
1010	0.08-0.13		0.30-0.60		0.04	0.05
1018	0.15-0.20		0.60-0.90		0.04	0.05
1020	0.18-0.23		0.30-0.60		0.04	0.05
1026	0.22-0.28		0.60-0.90		0.04	0.05
1035	0.32-0.38		0.60-0.90		0.04	0.05
1045	0.43-0.50		0.60-0.90		0.04	0.05
4130	0.28-0.33		0.40-0.60		0.04	0.04	0.15-0.35		0.80-1.10		0.15-0.25
4140	0.38-0.43		0.75-1.00		0.04	0.04	0.15-0.35		0.80-1.10		0.15-0.25
Grade		condition		Ultimat		Yield		Elongation		Rockwell
				Strength		Strength				Hardness
				ksi Mpa		ksi Mpa		%		B Scale
1020		HR		50 345		32 221		25		55
		CW		70 483		60 414		5		75
		SR		65 448		50 345		10		72
		A		48 331		28 193		30		50
		N		55 379		34 234		22		60
1025		HR		55 379		35 241		25		60
		CW		75 517		65 448		5		80
		SR		70 483		55 379		8		75
		A		53 365		30 207		25		57
		N		55 379		36 248		22		60
1035		HR		65 448		40 276		20		72
		CW		85 586		75 517		5		88
		SR		75 517		65 448		8		80
		A		60 414		33 228		25		67
		N		65 448		40 276		20		72
1045		HR		75 517		45 310		15		80
		CW		90 621		80 552		5		90
		SR		80 552		70 483		8		85
		A		65 448		35 241		20		72
		N		75 517		48 331		15		80
4130		HR		90 621		70 483		20		89
		SR		105 724		85 586		10		95
		A		75 517		55 379		30		81
		N		90 621		60 414		20		89
4140		HR		120 855		90 310		15		100
		SR		120 855		100 689		10		100
		A		80 552		60 414		25		85
		N		120 855		90 621		20		100
