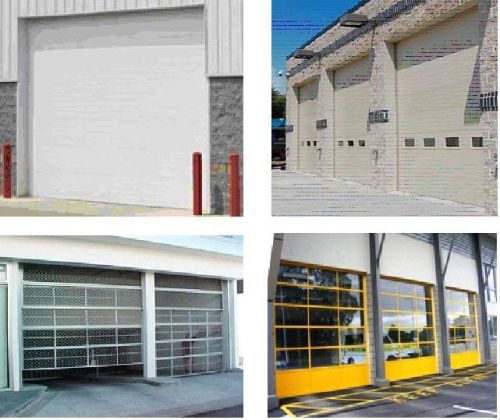

SECTIONAL OVERHEAD PANEL DOORS

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

1.2â€?aluminum stiles with a tongue and groove rail frame construction provides a superior joint strength 2.4â€?top and bottom rail and 2â€?intermediate rails create additional perimeter....

Company Information

Member Since 7 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

1.2â€?aluminum stiles with a tongue and groove rail frame construction provides a superior joint strength
2.4â€?top and bottom rail and 2â€?intermediate rails create additional perimeter strength.
3.Extrusions feature a closed construction for a rigid frame.
4.Available in clear anodized or white - optional powder coating available in a multitude of colors
5.Hidden through-bolt assembly insures maximum structural integrity.
6.Optional aluminum panels may be specified to create solid sections and are available as insulated or non-insulated.
7.Glass options are 1/8â€?plain, tinted or frosted (DSB), 1/8â€?(polycarbonate), 1/4â€?(tempered) or 7/16â€?(insulated, tempered) glass 1/8â€?plain glass is standard
Each full-view section utilizes white or black retainers.
Exhaust ports are optional for bottom section
Track options include 2â€?or 3â€?bracket or clip angle mount and designed to accommodate virtually any headroom design requirements.
Heavy-duty 14 gauge hinges offer stability and longer life
Long-lasting 10 ball rollers assure consistent, efficient operation
Bottom U-shaped astragal is standard

Available Make -UK, Australia, Malaysia, Italy, Twain, UAE.

TYPE-II - Micro-Grooved Steel Thermally-Broken Polyurethane Insulated Overhead Sectional Doors

1.Foamed-in-place CFC free polyurethane core permanently bonds the 26 gauge face and 27 gauge back steel to form a rigid homogeneous section
2.2â€?thick sections are thermally broken to eliminate convection
3.Tongue and groove meeting rails with joint gas welding provide superior joint strength and prevent air infiltration.
4.Concealed hinge attachment plates run the full height of sections for superior strength
5.Rigid exterior end stiles are finish painted white.
6.Tempered Glass is available in 7/16â€?insulated and 1/4â€?.
7.Glass is easily replaced or substituted by removing molded frames
Exhaust port is optional for bottom section
Track options include 2â€?or 3â€?bracket or clip angle mount and designed to accommodate virtually any headroom design requirements.
Heavy duty hardware may be specified with 11 or 14 gauge hinges and 10 ball rollers
Bottom U-shaped astragal is standard
Increased wind load requirements may be specified
Available in finish coat for all colors
