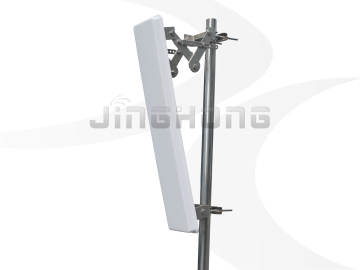

Sector Antenna, Brand Name : Jinghong

We offer sector antenna.
Jhs-3338-16d90as is wide-band, dual-slant polarized 90 degree sector antenna which frequency covers 3.3-3.8ghz.it is designed for wimax/broadband wireless applications with uniform energy distribution in coverage area.
� high gain and wide 90° horizontal beamwidth
� ip66 waterproof level
� uv protected abs radome
� rohs compliant
electrical
model jhs-3338-16d90as
frequency range 3300-3800 mhz
gain 16.1 dbi (+45 port) , 16.2 dbi (-45 port)
vswr �1.5
3db beam-width, h-plane 90°
3db beam-width, e-plane 6.5°
polarization dual slant ±45°
front to back ratio >30 db
port to port isolation >30 db
maximum input power 100 watt
impedance 50 �
lightning protection dc grounded
mechanical
connector 2 � n female
antenna dimension 700�140�35 mm
weight 3.6 kg
radome material uv protected abs
mounting mast diameter ø40~ø60 mm
operationg temperature -40° c to +65° c
rated wind velocity 216 km/h
