Security Gates

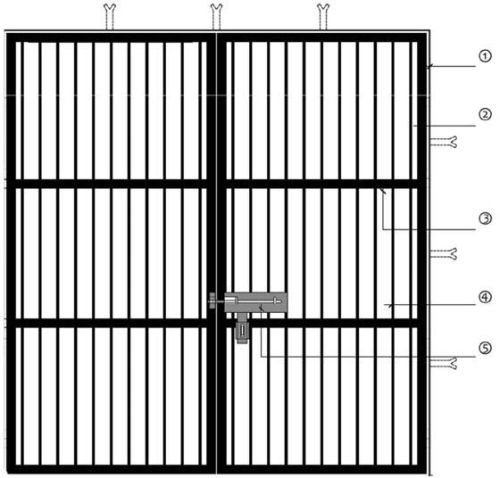

Double or single gate assemblies manufactured to standards supplied with an independent frame as a free standing structure or bolted to existing walls as a security gate. The matrix construction consists of flat bar horizontals at 450 centres with round vertical bars passing through the horizontals at 150mm centres. A fully weld construction and optional locking facilities for manual or electric operation.

50 x 50 x 5 mm thick channel or angle outer frame.

40 x 40 x 5 mm thick angle gate frame.

50 x 40 x 5 mm "T" section.

016 mm solid bar at 10cm c/c.

30 x 15 x 3 mm thick m.s. plate welded..
