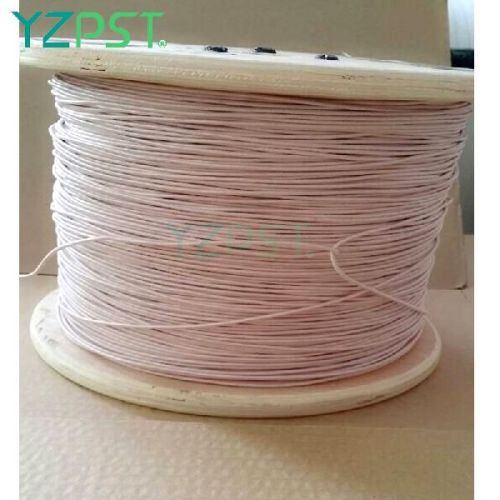

Security High Performance Motors Illumination Litz Wire

Litz wire  SD QA-1 0.07*600 High-performance magnetic induction coils: Apply to magnetic induction equipment of motors illumination, security, wireless charging and so on, such as infrared induction floor, mobile wireless charging. YZPST manufactures a wide selection of litz wire for custom applications. Our constructions include numerous fine-strand enameled wire & insulation configurations which enable us to produce litz wires that can perform and with strand various loads and conditions. Our wire, come in various servings and the inner enameled wire conductor can be suited for various temperature classes and for various temperature classes and requirements. We have stock wires in our factory, but our speciality is custom constructed litz. Any litz wire can be twisted in concentricity or aggregation according to the demands of customers. Conductor Diameter*Strand Number Measured breakdown voltage   (V) Maximal Resistance(Ω/m at20℃) Copper section     (mm²) Envelope of the maximum diameter(mm) Litz Wire 2UEW+2NY QA-1 0.07* 600 >900 0.0067~0.0089 2.3079 2.76 Litz Wire 2UEW+NY QA-1 0.07* 135 >900 0.030~0.0395 0.496 1.33 Litz Wire 2UEW+NY QA-1 0.10* 160 >1000 0.0127~0.0159 1.256 2.03 Litz Wire 2UEW QA-1 0.07* 600 >600 0.0067~0.0089 2.3079 2.71  Typical applications are: high frequency inductor, transformer, frequency converter, fuel cell, the horse, communication and IT equipment
