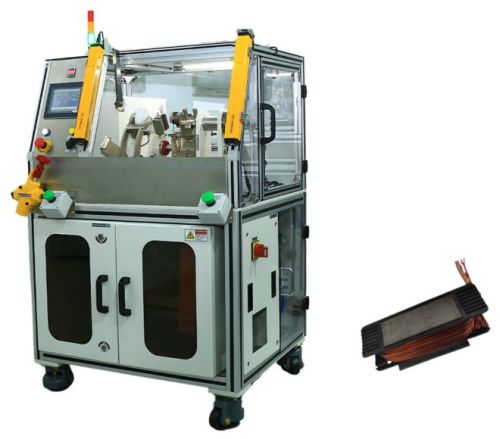

Segment Winding Machine SMW 250

The machine is designed to wind both rectangular as well as round conductors of large cross-sections. It finds application in the winding of segmented pole stators and axial flux motor coils (that require tailstock) in the EV segment.
Features
Segment Winding Machine SWM 250 is designed to wind square, rectangular as well as round conductors used in EV motors.
A sturdy and robust structure with the best utilization of floor space makes the machine ergonomically better for higher productivity and longer life.
High torque spindle coupled to geared AC servo motor, handles single and dual conductors with ease.
Servo-controlled traverse spindle allows for complex winding such as orthocylic winding and variable pitch winding.
