Seismic Drilling Rig

We are offering seismic drilling rig.
1. Technical description

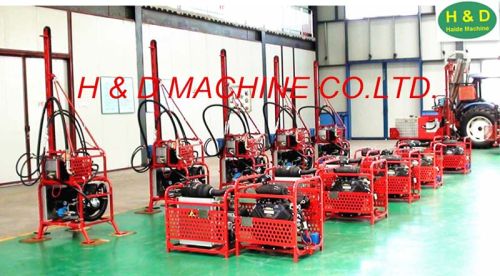

hd-20b man portable drilling rig was designed in 2012 and adopted international advantaged technology. Strict testing has been passed in the worst terrain and mountain areas. It can be used in hill, plain, forest, gobi, the seasonal farmland for petroleum prospecting. All of operation handles and indicators were installed on operation platform. The rig was installed with safety, caution and environmental protection symbols, and it meets with the requirement of hse. The rig is a kind of high efficiency and applied equipment for petroleum seismic crew.
The rig includes two sections: the first section is the main-rig section in which the rotating and pull-down of the drill tools is realized by hydraulic system powerd by an engine driving a hydraulic pump via a coupling. The second section is air compressor which powerd by an engine via a belt. the compressed air driven the down-hole hammer , and as the well washing medium. The rig totally needs two engines as the power.
Drilling method: depth
2. Air(hammer) drilling: 20m 2. Mud drilling: 20m 3. Casing drilling 15m
pipe (dia.*length) (mm): φ50*1500 φ102*1500
explosive method : after lift-ing the drills, center of the casing
hole dia. (mm) 3”,3.5” 68mm82mm
power swivel
rating torque: 540 n.m
rated speed 0～135 rmin
hoistingpush-down system
max. Hoisting weight: 1000 kg
max. Push-down force: 2 kn
max. Hoisting speed: 0.6 ms
hydraulic system
working pressure: 180 bar
engine power: 14 hp 3600rmin (diesel engine optional)
weight :max. Sets≤74 kg
overall unit ≤213 kg 4 parts
overall dimension: about 1000×800×2750 when running
piston mud pump
gasoline or diesel power option
perssure :14 bar displacement : 120 lmin weight : ≤115 kg
