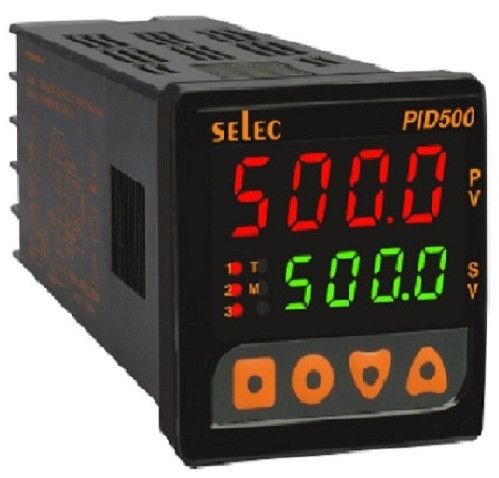

Selec PID500-0-0-01 - PID Controller, Analog

Name: Selec PID500-0-0-01 - PID Controller, Analog
Brand: SELEC
SKU: EI-8163949
Price: 5994 INR
Availability: InStock

Price:

5,994 / piece

Get Latest Price

Minimum Order Quantity : 10 piece
Sold By : A S Enterprises

Send Inquiry

Product Specifications

Materialprimarily made of plastic,plastic, specifically ABS plastic
Packaging TypeBranded Box packing
Brand NameSELEC
Size48 X 48mm
Supply TypeManufacturer, Exporter, Supplier, Distributor, Importer, Trader

Product Overview

Preferred Buyer From : All over the world

PID, Universal input, Analog/Relay/SSR output

Product: PID500

4 digit Dual bright display Advance PID temperature controller
Universal Input (TC: J, K, T, R, S/ RTD: PT100)
Signal input: (-5 to 56mV, 0 to 10V DC, 0 to 20 mA DC)
ON-OFF/Auto tune PID control
3 set point
5A relay control output
Dual Auxiliary 5A Relay output
48 mm x 48 mm size
Single step Ramp-Soak function
Panel mount
90 to 270V AC/DC supply voltage
CE, RoHS certified

Brief Specifications

Display Type	7 Segment LED Dual Display
Display Configuration	4+4 digits
Type of Inputs	Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, Signal Inputs: (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable)
Resolution	TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001
Accuracy	For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
Control Output	Relay or SSR or Current : 4 to 20mA DC (max load 500E) or Voltage :0 to 10V DC(min load 10K)
Auxiliary Output	Relay
Control Mode	Autotune PID / ON-OFF
Feature	Single step ramp soak
Communication	RS485 MODBUS communication (optional)
Supply Voltage	90V to 270V AC/DC
Size	48 x 48mm
Mounting Type	Panel Mount
Certification	CE

Optional specifications Serial communication Half duplex MODBUS RTU Transmission mode Transmission protocol 500 m maximum 9600, 4800, 2400, 1200, 600, 300 bits/ sec Transmission distance Transmission speed None, Odd, even 1 or 2 Parity Stop bits Response time 100 ms (Max and independent of boud rate)

The Selec PID500-0-0-01 is a 4-digit dual bright display PID temperature controller. It features universal input for thermocouples (J, K, T, R, S) and RTD (PT100), along with signal input options like -5 to 56mV, 0 to 10V DC, and 0 to 20mA DC. It offers both ON-OFF and auto-tune PID control, with three set points and a 5A relay control output.

Key Specifications:

Display: 4 digit, dual bright (Red + Green).
Input:

Thermocouple (TC): J, K, T, R, S.
RTD: PT100.
Signal Input: -5 to 56mV, 0 to 10V DC, 0 to 20mA DC.

Control: ON-OFF / Auto-tune PID.
Set Points: 3.
Output: 5A relay control output, Dual auxiliary 5A relay output.
Size: 48mm x 48mm.
Mounting: Panel mount.
Power Supply: 90 to 270V AC/DC.
Certification: CE, RoHS.
Functions: Single step Ramp-Soak function.

Contact Rating: 5A @ 250V AC or 24V DC
Power/Voltage: 220V

Motor Voltage: 20 to 240V AC, 12 to 240V DC
Switch Type: On Delay interval Timer
