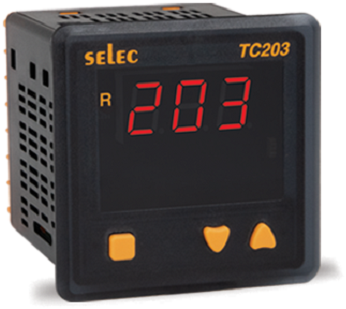

| Brand | Selec |
| Model No. | TC203AX |
| Size | 72 x 72 mm |
| Control Type | PID/On-Off |
| Input Type | Thermocouple, RTD |
| Control output Type | Relay/SSR |
| Resolution | 1 Degree C |
| Type | Digital |
| Display Type | 3 Digit/7 Segment |
| Mounting Type | Panel |
| Voltage | 90-270 VAC/DC |
| Frequency | 50/60 Hz |
| Display Type | 7 Segment LED Single Display |
| Display Configuration | 3 Digits |

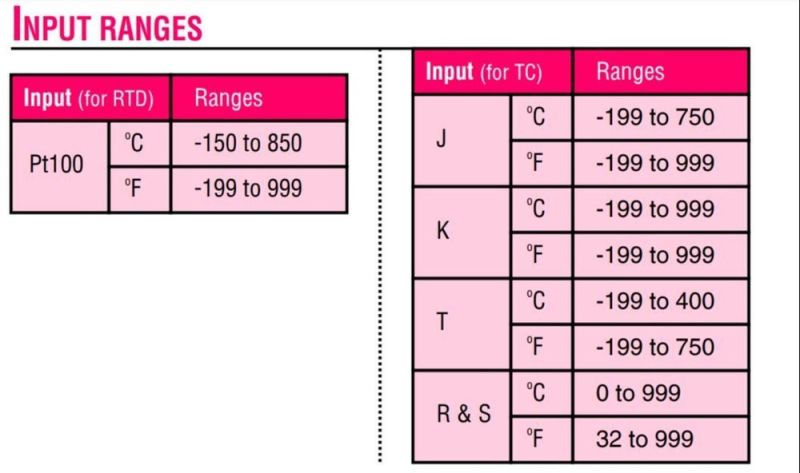

| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Resolution | Fixed 1° |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °: For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
| Control Output | RELAY or SSR |
| Control Mode | Auto Tune PID / ON-OFF |
| Supply Voltage | 90 to 270V AC/DC |

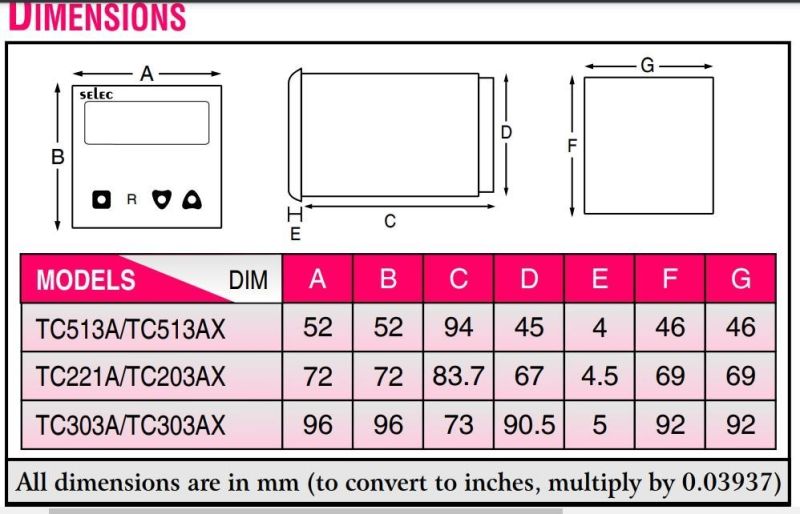

| Size | 72 x 72mm |
| Mounting Type | Panel Mount |
