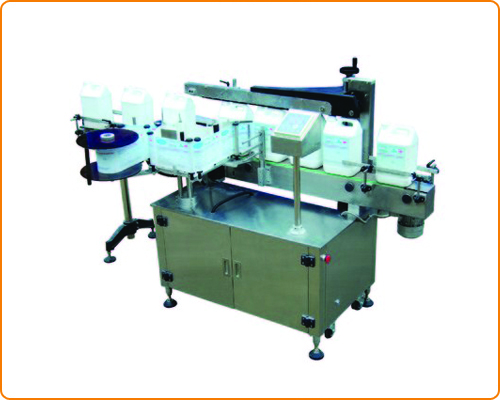

Self Adhesive Two side Flat Bottle Labeling Machine

Listing ID #4321009

Get Latest Price

Net Weight450 Kgs.
Electrical Specification**0.25 HP, 230 Volts, 50 Hz 90 Watt, Gear Motor 6V DC / 40 Kgs. x 2 nos.
Machine Dimensions **2135 mm (L) x 1750 mm (W) x 1450 mm (H)
ModelDASAL-150TF
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Electrical Specification** 0.25 HP, 230 Volts, 50 Hz 90 Watt, Gear Motor 6V DC / 40 Kgs. x 2 nos.
No. of Sealing Head 1 Nos.
Output / Hour* 3600 to 9000 Nos.
Machine Dimensions ** 2135 mm (L) x 1750 mm (W) x 1450 mm (H)
Case Dimensions 2350 mm (L) x 1950 mm (W) x 1650 mm (H)
Gross Weight 750 Kgs.
Net Weight 450 Kgs.
Direction of Movement Left to Right
Model DASAL-150TF
Height of Conveyor ** 860 mm to 910 mm

The Automatic Vertical Sticker Labeling Machine MPASAL-150TF is one of the most users friendly. The machine is used for two sides labeling on flat surface of different size of flat container. It is capable to labeling up to 150 containers per minutes depending on products and label size. The automatic model is equipped with belt spacing device resulting in a simple to “No change parts required”.

Operation :

The round containers positioned & curate spacing between two containers by the belt spacing device and a belt drive mechanism hold the container from top of the container for two sides labeling on flat container at the labeling point, an electronics product sensor sense container & relies a label from self adhesive label roll. If machine is equipped with batch printing device in that case batch printing device prints the batch no. & other matter on label during label is stationary means time between sensing of two label. The sensed round container moves on conveyor sticker label at labeling point wrapped around to container. Then the labeled container moves further through a rubber pressing belt & stationary rubber pad that ensures neat & perfect fixing of label.

Salient Features :

High Production Speeds.
Suitable for any type of Flat Container.
Container hold from top for perfect & accurate labeling.
Stainless steel 304 construction.
GMP design.
Accurate label placement.
Full Security Package including counter.
Secondary pressure unit.
PLC with Soft Key Pad System.
Product data storage Facility.
No change parts requirements.
Very less down time for change over.
Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

INPUT SPECIFICATION
Label Specification	Length**	30 mm to 180 mm
	Height**	16 mm to 100 mm
	Space between two label	Min. 3 mm in anti clock wise
	Roll Diameter	Max. 300 mm X ID 75 mm
Container Size**	Flat / Square	15mm to 100 mm (Length) Respectively 10mm to 50 mm (Width) Respectively height 58 mm X 240 mm (Height option for other bottle height available)
* Depends on bottle size, cap size and type of cap. We can supply as per customer requirements. * With help of change parts.
