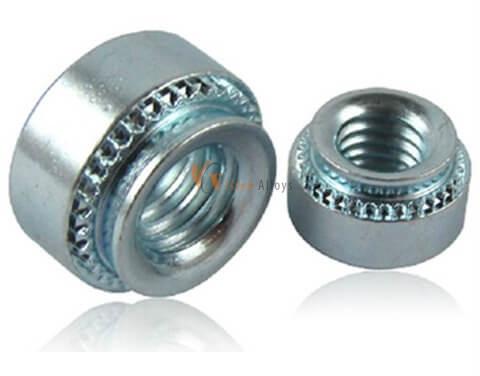

Self-Clinching Nuts, Size : 3/6" To 2", Custom Sizes

Product Details

Thread & Pitch	Material Code	Minimum Sheet Thickness	S Max	C Max	D ± 0.25	H ± 0.25	Hole Size in Panel 0.08 – 0.0	Min C/L to edge of panel
M2 x 0.4*	0	0.8	0.77	4.22	6.3	1.5	4.25	4.8
	1	1	0.97
	2	1.4	1.38
M2.5 x 0.45*	0	0.8	0.77	4.22	6.3	1.5	4.25	4.8
	1	1	0.97
	2	1.4	1.38
M3 x 0.5	0	0.8	0.77	4.22	6.3	1.5	4.25	4.8
	1	1	0.97
	2	1.4	1.38
Alternative M3 x 0.5*	0	0.8	0.77	4.73	7.1	1.7	4.75	5.6
	1	1	0.97
	2	1.4	1.37
M3.5 x 0.6	0	0.8	0.77	4.73	7.1	1.5	4.75	5.6
	1	1	0.97
	2	1.4	1.38
M4 x 0.7	0	0.8	0.77	5.38	7.9	2	5.4	6.9
	1	1	0.97
	2	1.4	1.38
M5 x 0.8	0	0.8	0.77	6.38	8.7	2	6.4	7.1
	1	1	0.97
	2	1.4	1.38
M6 x 1.0	0	1.2	1.15	8.72	11.05	4.08	8.75	8.6
	1	1.4	1.38
	2	2.3	2.21
M8 x 1.25	1	1.4	1.38	10.47	12.65	5.47	10.5	9.7
	2	2.3	2.21
M10 x 1.50	1	2.3	2.21	13.97	17.35	7.48	14	13.5
	2	3.2	3.05
Alternative M10 x 1.50*	1	2.3	2.21	12.65	14.3	6.72	12.7	11
	2	3.1	3.05
	3	6.1	5.97
M12 x 1.75*	1	3.1	3.05	16.9	20.55	8.5	17	16
	2	6.1	5.97

SELF-CLINCHING NUTS SPECIFICATION

Material	Standards	Grades
Nickel Alloy Hex Nuts	ASTM / ASME SB 160 / 164 / 425 / 166 / 446 / 574 / 472	UNS 2200 (NICKEL 200) / UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600) / UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 8020 (ALLOY 20 / 20 CB 3)
Stainless Steel Hex Nuts	ASTM / ASME A/SA 193 / 194	B 8 (304), B 8C (SS 347), B 8M (SS 316), B 8 T (SS 321), A 2, A 4
Alloy Steel Hex Nuts	ASTM / ASME A/SA 193 / 194 GR	B 6, B 7/ B 7M, B 16, 2, 2HM, 2H, GR 6, B 7, B 7M
Duplex Steel Hex Nuts	UNS NO. S 31803, S 32205	Range: M10 TO M100, LENGTH UPTO 5 METERS
Nonmetallic Materials:	Acrylic, Kel-F, Lexan, Polypropylene, Poly Vinyl Chloride, Teflon, Zytel 31, 101, 105
High-Temp Alloys	Discaloy, 19-9 DL, 16-25-6, A286, Titanium, Nimonic 80, Mulitmet, Haynes 25, Greek Ascalloy, Unitemp 252, Udimet 500, Rene 41, Inco 700, Inco 901, Hastelloy X, 235, Waspaloy, RA 330
Copper Base Alloys	Copper, Brasses: Yellow, Free-cut, Red, Naval, Bronze: Commercial, Phosphor, Silicon A & B, Aluminum, Silicon-Aluminum, Manganese, Ampco Alloys, Munitz Metal, Cupro-Nicles
Aluminum Alloys:	1100, 2011, 2014, 2017, 2024, 3003, 5052, 6053, 6061, 7075
Trademarks:	Carpenter, Armco, INCO, Cabot, DuPont.
Finish:	Black Oxide, Zinc Plating, Hot Dip Galvanized
