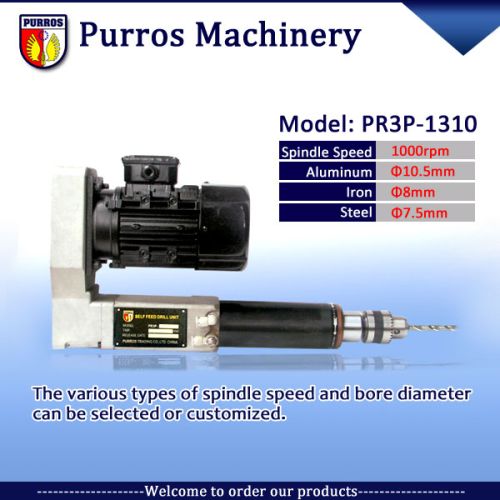

Self Feeding Drill Head, Brand Name : PURROS

We are offering self feeding drill head.
Ⅰ. Purros® electro pneumatic drilling units parameters
mode: pr3p-1310
no-load speed: 1000rm
drilling diameter: aluminum: φ10.5mm cast iron: φ8mm steel: φ7.5mm
spindle stroke: 80-120mm
cutting feed stroke: 0-60mm
motor power: 0.55kw-0.75kw
feed thrust: 1200n
air consumption: 3-6l
ⅱ. Purros® electro pneumatic drilling units characteristics
1. High-precision
core technology of electro pneumatic drilling units is played very well, which completely strengthened the versatility of the product and thus made the high precision of drilling units reflected extremely.
2. High rigidity
axial rail structure is used, which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.
3. High performance
a unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindle, which can meet variety of holes machining requirement.
ⅲ. Products can be equipped with electro pneumatic drilling units
1. Hydraulic damper (purros® hydro speed regulator)
speed can be adjusted arbitrarily from lower to higher by a hydraulic feeding speed control device.
2. Multi-axis machining head (purros® multiple spindle heads)
multi-axis machining head can be amounted, which can achieve high efficiency drilling and meet different requirements of machining axes and axis spacing.
3. Desktop support (purros® universal stand)
such desktop support is suitable for any machining directions, which can fix the drilling units angle freely.
4. Combination machine
automatic drilling can be realized as it can be installed to the non-standard combination machine.
5. Single desktop automatic bench drill
high-efficiency automatic drilling equipment can be formed if equipped with electro pneumatic drilling units, desktop support and circuitry system together.
