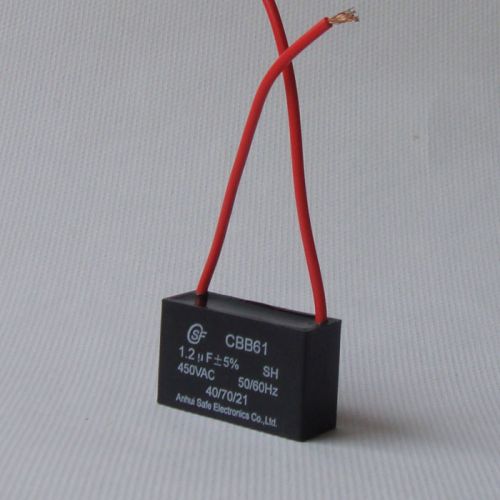

Self-healing Capacitor, Brand Name : Csf

DETAIL DESCRIPTION OF CAPACITOR:
1, Small, light weight,
2, Very low loss, long lifespan, good self-healing
3, High insulation resistance, safety and stable.
4, Suitable for the start-up and running of various AC motor, especially for washing machines,
Micro water pumps, cleaning machines etc.
Specification:
1)Climate type: 40/70/21
2)Capacitance tolerance: +/-5%, +/-10%
3)Rated Voltage: 250VAC-630VAC
4)Rated Frequency: 50/60Hz
2. Testing Voltage:
A) Between leading-out: 1.75UR, 10S no breakdown
B) Between leading-out end and shell: 2200V AC, 10S no breakdown
3. Insulation resistance: � 3, 000 MΩ . UF,
Tangent of loss angle: Tgâ?¤ 0.002(50Hz)
