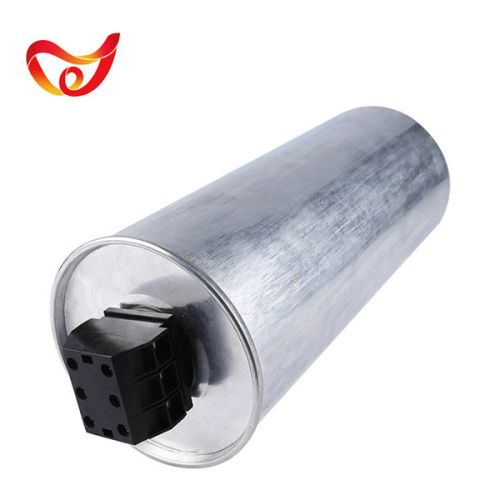

Self-healing Compensation PTB Power Capacitor, Brand Name : siwoc

₹ 2,669.11 / Piece

MOQ5 Piece(s)
Brand Namesiwoc
Operating Temperature-25℃~+55℃
Country of Origin230VAC-1000VAC
Class of safety protectionS2
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

specifications

rated voltage

230vac，250vac，280vac，400vac，415vac，430vac，440vac，450vac，480vac，525vac，690vac，730vac，750vac，1000vac

rated frequency

50/60hz

capacitance range

1~100kvar

class of safety protection

operating temperature range

-25℃~+55℃

capacitance tolerance

-5%~ m9 +10%

volatge proof

between teminals

2.15un（10s）

between terminals and case

3500vac（10s）

maximum permissible voltage

1.1un

maximum permissible current

1.3in

insulation resistance(irxc)

≥3000s（20℃，100v，1min)

dissipation factor

＜0.25w/kvar

features：
.self-healing property
.extremely stable performance and high degree reliability.
.anti-explosion design,more safety.
.built-out discharge resister can assure residue voltage in terminals lower down under 50v in 3minutes after the capacitor stops working，and assure capacitor release from transmission-line system of electrice power.
.small volume and light weight，only under 2/3 of the old one，lt can be easy to install.
