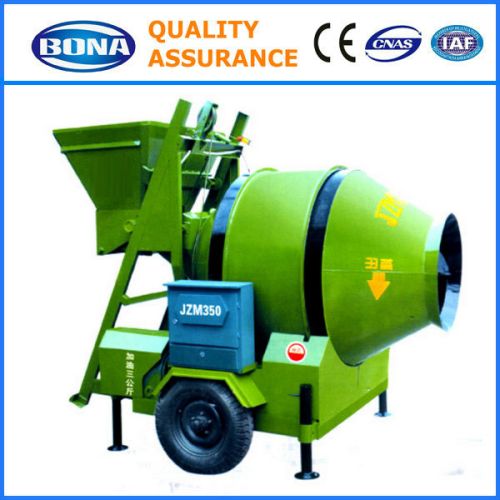

Self Loading Concrete Mixer Machine

₹ 1.80 Lakh / 5000 5000 Piece

MOQ1 Piece(s)
Discharging Volume350L
Total Weight2217kg
Outline Size4310×2140×4240mm
Charging Volume:560L
Productivity10-14m3/h
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Product Details

Outline Size4310×2140×4240mm
Productivity10-14m3/h
Total Weight2217kg
Discharging Volume350L
Charging Volume:560L

we offer JZM350concrete mixer is a kind of self-fall double-prick reversal discharging machine; the drum is driven by the gear ring; during working, the frontal revolution is mixing, and the reversal revolution is discharging. The plastic and half-dry hard cement can be mixed. It is applicable to the common construction working site, road, bridge and each kind of cement manufacturer
JZM350 Main Technical Parameters
Charging Volume: 560L
Discharging Volume: 350L
Productivity: 10-14m3h
Mixing canister rotate speed: 13rmin
Maximum size of Aggregate: 60mm
Water-supply Error: ≤ 2%
Discharging Height: 1250mm
Mixing Electric Motor: 5.5kw(Y132S-6)
Water Pump Electric Motor: 0.55kw(40JDB-12)
Lifting Electric Motor: 4kw(YEZ112M-4)
Outline Size (L×B×H): 4310×2140×4240mm
Total Weight: 2217kg
