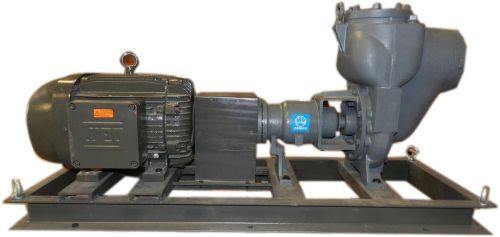

Self Priming Centrifugal Pumps

PG Pumps Compatible For Gasoline, Kerosene, Avgas & Jet Fuel
SPECIFICATIONS
FEATURES & BENIFITS
DOWNLOADS
The “PG” model is available in Pedestal mount
for flexible coupling or Close Coupled mount to
C Face Class I Group D Explosion Proof electric
motors. Ductile Iron is the standard construction
for the volute and adapter. The open impeller is
standard in cast iron construction with aluminum as
an optional material. Standard material for the wear
plate is aluminum. The standard self-lubricated
Type 2 mechanical seal is equipped with a carbon
rotating face, viton elastomer and stainless steel
spring. The stationary face is silicon carbide.
