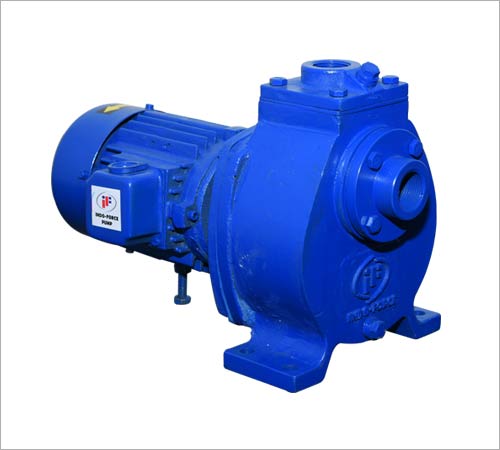

Self Priming Non Clog Dewatering Pump

Listing ID #4268360

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Features: Self Priming Pump Priming required during installation only Self Priming upto 8.0 meters at means sea levelfor ifd series & upto 6.0 meters. Construction:....

View More Details

Send Enquiry

Product Details

Features:

Self Priming Pump Priming required during installation only
Self Priming upto 8.0 meters at means sea levelfor ifd series & upto 6.0 meters.
Construction: BarePump/Monoset/Monocoupled
Shaft sealing gland packing mechanical seal
Totally enclosed fn cooled motor suitable for wide volatage
Non-clog type impeller suitable to handle liquid with solid particle & mixtures
Easy maintanance with interchangable parts

Srandard Specification:

Power Range: 0.37 to 7.5KW (1.0to10HP) 225 Volt
Supply: 225Volts,1phase,50Hz AC supply,
415Volts, 3phase, 50Hz AC supply
Sue. XDel. Size: Ø 25x25mm to Ø100x100mm
Speed: 1500 / 3000RPM
Total Head: Upto 36 meters Up
Capacity: to 2000 LPM
Solid Handling Capacity: Upto 20mm
Motor-Degree of Protection: Upto 65C
Motor Class of Insulation: IP54, 'B'class

Application: Industrial

Effluent Treatment Plants
Transfer of Petroleum products,Chemicals,Treated / Raw water
Ash water in Thermal Power Plants
Waste liquid in Tiles & Marble factories

Domestic:

Civil construction sites
Swimming pool filtration
Dewatering of basement water & trenches

Domestic:

Pumping Water From Docks, Ports, Vessels

Agriculture:

Dewatering

Material of Construetion for Dewatering Pumps IFD Series

S.No.	PART	MATERIAL
1	Impeller(Semiopentype)	GradedCastIron
2	DeliveryCasing	GradedCastIron
3	WearPlate	GradedCastIron
		CarbonSteel
4	Shaft
5	ShaftSleeve	SS410

Material of Construction for Self Priming Monoset Pumps IFD Series

S.No.	PART	MATERIAL
1	Impeller (Non-Clogtype)	Bronze
2	Casing	Graded Cast Iron
3	Wear plate	Stainless Steel
4	Delivery Bend	Graded Cast Iron
5	Shaft	Carbon Steel
6	Shaft Sealing	Mechanical seal fitted
7	Integrated Non Return Valve	Nitrile Rubber with M.S.plate
8	Bracket	Graded CastIron
9	Base Frame	M.S. Fabricated

Water Rating Chart

PERFORMANCE CHART - DEWATERING MONOBLOCK & MOTOR COUPLED PUMPS
MODEL	KW	HP	RPM	SOLID HANDLING SIZE(mm)	PUMPSIZE	TOTAL HEAD IN MTR
						3	6	9	12	13	15	16	18	19	20	23	25	26	28	30	33
						DISCHARGE LTR. PER MINUTE
IFD1/2	0.37	0.5	2800	5.5	25X25	115	90	78

IFD1.0	0.75	1.0	2800	7.0	40X40			264	235	205	150

IFD2.0	1.5	2.0	2800	8.5	50X50		380		360	324		290	175		110

IFD3.0	2.2	3.0	2800	11.0	50X50			500		480	465	450	405		390		360

IFD5.0	3.7	5.0	2800	8.0	80X80								575	510	485	450	420	375	330	290	255

IFD7.5	5.5	7.5	2800	15.0	80X80								900	850	835	810		720	705	635	450

IFD5.0	3.7	5.0	1440	16.5	80X80		1110		1035		900		810		750

IFD10.0	7.5	10.0	1440	19.0	100X100							1960		1770		1610		1460		1250
