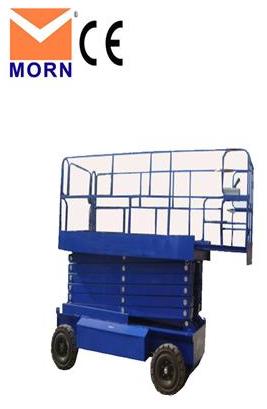

Self-propelled-scissor-liftsps.3-4

self-propelled-scissor-liftsps.3-4
self propelled scissor lifts product advantages: it does not need any outriggers, one man operates on the working platforms;moving forward,turning around and lifting up are easily operated.short chargeable time and long dural time of the battery; easily moved, spacious working platforms, smooth working condition and high working efficiency.
http://www.sinolifter.com/
moving method: the chargeable battery provides the power to move and steer around. lifting power:the chargeable battery provides the power to raise up the lift platforms. working heights: ranging from 4m,6m,8m,9m,10m,12m,14m (please refer to the products specification list) applications: it is widely used for aerial installation & maintenance of the working sites without power supply and with smooth working grounds,such as hotels,grand hall,sport statium,large factory,workshops,warehouse,granary,bus/railway stations,hotels,airports,gas station and aerial pipeline.
model # load capacity table size lifting height working height overall dimensions dry weight
sps.3-4 300kg 1500ã�750mm 4m 5.7m 1.70ã�0.90ã�1.10 m 550kg
sps.5-4 500kg 1500ã�750mm 4m 5.7m 1.70ã�0.90ã�1.10 m 600kg
sps.3-6 300kg 1500ã�750mm 6m 7.7m 1.70ã�0.90ã�1.30 m 700kg
sps.5-6 500kg 1500ã�750mm 6m 7.7m 1.70ã�0.90ã�1.30 m 780kg
sps.3-8 300kg 1650ã�750mm 8m 9.7m 1.87ã�0.90ã�1.41 m 800kg
sps.5-8 500kg 1650ã�750mm 8m 9.7m 1.87ã�0.90ã�1.41 m 880kg
sps.3-8 300kg 1800ã�1200mm 8m 9.7m 2.30ã�1.50ã�1.42m 1240kg
sps.5-8 500kg 1800ã�1200mm 8m 9.7m 2.30ã�1.50ã�1.45m 1400kg
sps.8-8 800kg 1800ã�1200mm 8m 9.7m 2.30ã�1.50ã�1.54m 1480kg
