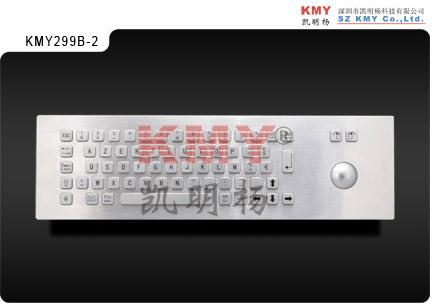

Contact SupplierWe are offering self service kiosk dustproof metal keyboard with trackball.
model no.: kmy299b-2
dimensions:
front panel: 431 x 126mm
diameter of trackball: 38mm
interface: usb or ps2
outstanding features:
65 keys stainless steel top panel mounting keyboard with trackball
support os: windows 9598ntme20002003xpvista, linux and unix
customized layout available
lettering by etching and inking, or laser technology
carbon-on-gold key switch technology (silicon gel)
mechanical optical trackball optional
waterproof and dustproof
very rugged vandal proof design
can be cleaned with soapy water, disinfectant or other cleaning agents
material:
front panel: high quality 304# stainless steel
keys: high quality 304# stainless steel
trackball: high quality 304# stainless steel
back panel: aluminum alloy
mechanical data:
key trip: 1.5mm
key pressure: 0.8~1.6 n
lifespan: >2 million operations per key
gross weight: 2.0 kgs
electrical data:
input voltage: 5.0vdc±5%
electric current: 10ma
emc emission: en55022
esd standard: air discharge 8kv; contact discharge 6kv
environmental adaptability:
operating temperature: 0°~+60°
storage temperature: -25°~+80°
relative humidity: 30%~90%
atmospheric pressure: 60~106 kpa
reliability:
mtbf: >20,000 hours
mttr:
ce, fcc, rohs, esd compliant
waterproof and dustproof class: ip65 (front panel)
vandal resistant class: ik07
