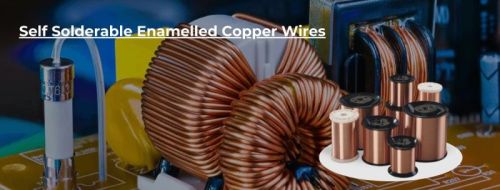

We offers an industry-leading range of high quality fine and ultra-fine enamelled copper wires. The enamelled wire properties governing proper selection not only require consideration of the end use conditions but system compatibility and ease of use in production. Solderablility, abrasion resistance, bondability, flexibility, insulation builds, etc.
Are all typical production and design considerations. Higher temperature requirements and more complex systems dictate the need for knowledgeable selectivity of enamelled wires. In addition to the product featured in this catalogue, we can manufacture custom insulated wires to meet your requirements.
APPLICATIONFine and Ultrafine Enamelled Copper Wires are mainly used in Small Transformers,Relays,IgnitionCoils,Transformers& Small Motors
| Product Name / Code | SSFC 155°C | SSFC+N 155°C | SSFCP 155°C | SSHC 180°C | SSHC+N 180°C | SSPEI 180°C |
|---|---|---|---|---|---|---|
| Standards : IEC (including the following norms) | IEC 60317-20 | IEC 60317-19 / IEC 60317-20 | IEC 60317-20 | IEC 60317-51 | IEC 60317-51 | IEC 60317-23 |
| NEMA (including the following norms) | MW 79-C | MW 80-C | MW 79-C | MW 82-C | MW 83-C | MW 77-C |
| JIS (including the following norms) | JIS 3202 | – | JIS 3202 | JIS 3202 | JIS 3202 | – |
| Size Range | 0.010 mm – 1.6 mm | 0.010 mm – 0.700 mm | 0.010 mm – 1.6 mm | 0.010 mm – 1.6 mm | 0.010 mm – 0.700 mm | 0.010 mm – 0.700 mm |
