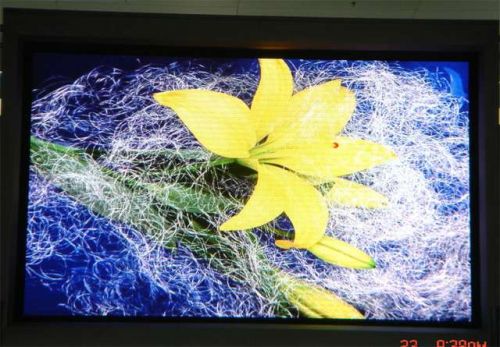

Sell Stage Background Indoor LED Display

Description Technical parameter
Unit module PCB 2 layers
Module size 244mm(W)*122mm(H)
Pixel pitch 7.62mm
pixels Density 17222 dots/ã?¡
Pixel configuration 1R1G1B
LED specification SMD3528 3-in-1
Pixel resolution 32 dots(W)* 16 dot(H)
Max Power consumption 24 w
Weight 0.5kg
Working voltage DC5V
Power port VH4(++--)Ã?1pcs
2P U-terminal Ã? 1 pcs
Signal interface HUB 75
Cabinet Dimension 976mm*976mm*130mm
Quantiy of Module 32 pcs
Power supply 5V/40A* 4 pcs
thermal discharge fan*4 pcs
Total Weight 50kgs
Pixel per cabinet 128dot*128dot
Best viewing distance 8ï½? 50m
Best viewing angle 180°(H) /90°(V)
Temperature storage: - 35â?? ï½? + 85â??
working: â??- 20â?? ï½? + 65â??
Operation humidity â?¤90 ~ 95%
Thickness 13cm
Packing 1000mm*500mm*1000mm
Quantiy 2 pcs
G. weight 128 kgs (including cabinetï¼?
Note: the following size can be shosen:
732mmx732mm, 732mmx976mm,1220mmx976mm,1220mmx1220mm
Power Working voltage AC220V ± 10%
or AC110V ± 10%
Average Power consumption 480 w/ã?¡
Max. Power consumption â?¤ 800 w/ã?¡
Current â?¤20mA(single LED)
Control system PC Pentium 4 or above
Operating system WIN 98/2000/NT/XP
control method Synchronization
Main technical
parameter Driving device Constant Current
Drive type 1/8 Scan
Refresh frequency â?¥400Hz/s
Grey scale/colors 256 levels of each
color(R/G/B)/ 16.7M colors
Brightness of white balance â?¥2,100cd/ã?¡
Brightness adjustment 255 levels of each
color(R/G/B) by software
Video Signal PAL/NTSC
Control system DVI display card + full
color controller card
MTBF â?¥10,000 hours
Life span â?¥70,000 hours
Flatness Tolerance of
pixel pitchâ?¤0.3mm
Tolerance of
modules between â?¤1.5mm
Display Mode 800*600; 1024*768
Communication distance no less than
100 meters (network cable)
Soft ware LED media player Led studio
