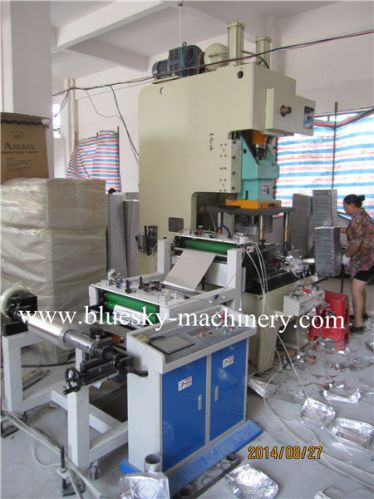

Semi Auto Aluminium Foil Container Machine

We are offering semi auto aluminum foil container machine 45t.
product description:
disposable aluminium foil container making machine mainly produce aluminium foil food containers, dishes & trays. The working speed is 40-80 pcsmin, and its speed depends on container's size and complexity.
Disposable aluminium foil container making machine is composed of the followings:
1. Decoiler (with an auto-lubricator)
2. Electrical control panel
3. Foil feeder
4. Pneumatic press machine (capacity of 45t)
5. Aluminum foils container mould
6. Container collector
main features:
1. Aluminium foil container machine work fully automatically. Worker control & regulate this machines by electric control panel, including the air-pressure and electricity.
2. There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
3. The foil feeder feed aluminium foil into press machine as per setting, controlled by plc, which assure a high-precision step.
4. The press can be equipped with single cavity or multi-cavity moulds for producing wrinkle-wall or smooth-wall container.
5. We can design and manufacture different machines and moulds on different customers' request.
working flow of aluminium foil container machine:
decoiling---foil lubricated---foil feeding ---punching---container collector
main technical parameter:
1. Max.aluminium foil coil width: 650mm
2. Aluminium foil inside diameter: 76152mm
3. Feeding speed: 30mmin
4. Feeding length: 30-900mm
5. Feeding tolerance: +-0.3mm
6. Whole production line working speed: 40-80 pcsmin.
