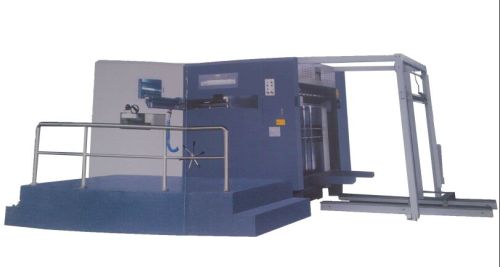

Metal ELECTRIC Semi Auto Flat Die Cutter Machine

We are offering semi auto die cutter machine.
Bmy series of die-cutting and creasing machine are based on the similar products in china and overseas.with mature technology and new development by our engineer, it is special for corrugated paper,cardboard and paperboard. High tensile griper bars and advanced feeding facility can handle various papers,cardboard and corrugated paper; front , side and back positioning guarantee the precision of the die-cutting; high precision intermittent mechanism; fast action pneumatic and pneumatic locking plate mechanism. Plc and man-machine interface to display the running speed, quantity of paper and total running time.troubles are displayed t make the trouble solving very fast and convenient. Transducer controls the motor and change speed without stop. There are many sensors and safety mechanism to protect running and people.
Model bmy-1700
max.paper size 1700x1210mm
min.paper size 680x600mm
max. Die-cutting size 1680x1190mm
max. Die-cutting pressure 300ncm3
paper cardboard:200-2000gm2
corrugated paper:max 8mm
max. Die-cutting speed 3500 sheetsh
max feeding pile height 1450mm(above the level)
max delivery pile height 1250mm(above the level)
total power 17.5kw
weight 22t
overall dimension 4500x2600x2700mm
