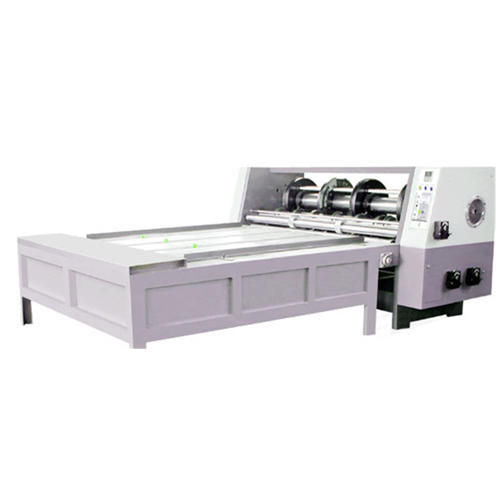

Semi-Auto Lead Chain Paper Feeder Slotting Machine

Semi-Auto Lead Chain Paper Feeder Slotting Machine
About us:
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.

Description:
 1.This machine adsorbs the features of the same model from home and abroad.
 2.It is equipped with 4-knife adjustment for the height of the cardboard box and length and width adjustment as the link structure movement for the upper and lower knife stands,upper and lower pressing line,picking line rod and regulation ruler hand;saving roving order changing time.
 3.The slotting back knife on this machine adopts national patent;back knife cardboard output springing structure,which prevents the back slot from being broken.
Technical parameters:
   Type        BK-350        BK-380          BK-420          BK-440
Max.size of paperboard  1200×24002600mm  1450×24002600mm 1600×260028003000mm 1830×280030003200mm
Min. Size of paperboard     350×600mm      380×600mm       420×600mm       440×600mm
Slotting Width 160×160×160×160mm 160×160×160×160mm   160×160×160×160mm   160×160×160×160mm
Working thickness       2-12mm        2-12mm           2-12mm          2-12mm
Working speed      60pcsmin       60pcsmin         60pcsmin         60pcsmin
Total power        5.5KW         5.5KW           6KW            6.5KW
