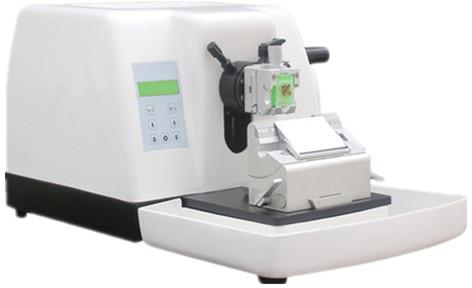

Contact SupplierWe are offering semi auto microtome rd388 ,stable performance, easy to operate,handwheel can be
locked at any position ,cassette clamp and standard specimen clamp
features:
v advanced driving systems,fuctions of section,trimming,fast forward,backward etc
v lcd screen shows section and trimming thickness range,numbers of section and trimming
v section and trimming mode can be finished by controlling systems
v locking handwheel
v large waste tray,easy to unload
v universal cassette clamp and standard specimen clamp;emergency stop systems
technical specifications:
v section thickness : 0.25-60μm
0.25 μm increment from 0.25 to1 μm
1 μm increments from 1 to 10μm
2 μm increments from 10 to 20μm
5 μm increments from 20 to 60μm
v trimming thickness : 0.25-60μm
v minimum setting value 0.25μm
v horizontal stroke 28mm
v vertical stroke 60mm
v maximum specimen size φ 50mm
v precision error: ±5%
v working voltage ac220v 50hz
ac110v 60hz
v dimension 150va
v net weight 24kg ,.
