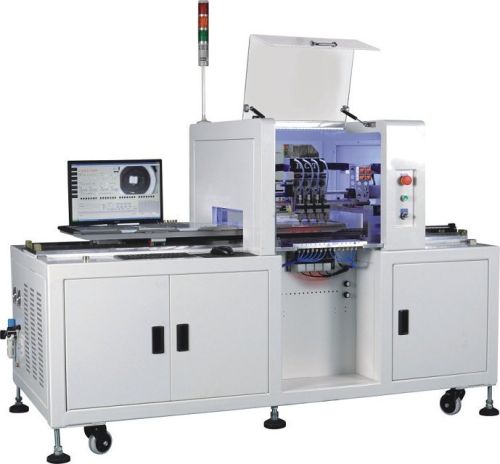

Semi Auto SMT Placement Machine

HCT-E15000 is a semi-automatic LED Mounter with BALL SCREW DRIVING especially developed for small and medium LED lighting manufacturing enterprises.
Competitive Advantages of the product
● Optimized pick place routing design, ensures precision end speed
● Each mounting head has its own Z - direction servo motor, which is designed for vertical motion
● Works with different types of high-precision nozzle
● Suit for variety of SMD LED components, and high-power LED
● Using imported high precision ball screw, motor, electromagnetic valve, cable, etc., effectively improve the placement accuracy, stability and service life of machines
We are instrumental in providing to our valuable customers excellent quality Semi-auto LED Mounter which is available with following specification:
Model#: HCT-E15000
Outline Dimensions: L*W*H 2000*920*1250mm
Total Weight: Approx 650kg
PCB:
PCB Size Max:1200mm X310mm
PCB Thickness: 0.5-3.0mm
PCB Convey Direction: From Left to right
Operation System:
Software: Windows XP
Display: LCD Monitor
Input Device: Mouse & Keyboard
Vision System:
No. of Camera: 5 Sets
Mark Point Recognition: Gray scale & Multi - View Shape Recognition & Edge Detection
Positioning Way: MARK by Vision Alignment System
SMD Components: 0402 - 5050 - 7474 (Max Height 6mm)
No. of Placement Head: 4 Nozzles
No. of Feeders: 14 Units (8mm Feeders)
Accuracy: ±0.1mm (chip & IC)
Kinetic Precision: ±0.01mm
Speed: 22000CPH (maximum)
Power Supply: Single phase, AC 220V (±10%), 50Hz
Maximum Power: 2.0 KW
Compressed Air: 0.7MPA
Clients can avail this SMT Placement Machine at industry leading prices from us.
