Contact Supplierwe are offering semi automatic bandsaw machine.
model properties :
facility usage bunu user friendly
automatic hydraulic pressing with button control
pressure indicator for band tension
warning for out or order and display at screen
showing the cutting material number
automatic stop at the number of cut that wanted
automatic stop when band brake off
high quality electric system works without problem
opportunity of choosing circuit during the work
opportunity of choosing circuit between ( 0 mtmin - 50 mtmin )
possibility to control the cutting speed
cover switch for safety
back driver feeding with roll

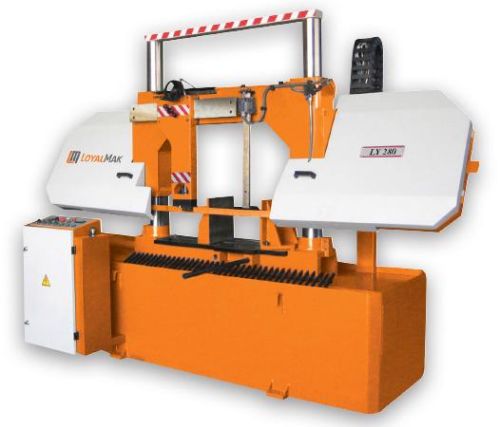

semi automatic band saw machine ly 280
technical specifications
capacity 90 degrees mm
280 mm
280 mm
160 x 280 mm
capacity 45 degrees mm
160 mm
160 mm
160 x 280 mm
bandsaw blade lenght 4150 x 34 x 1,1 mm
coolant tank capacity 30 lt
hydraulic tank capacity 15 lt
cutting speed 20 - 100 mmin
main motor 1,5 kw
hydraulic motor 0,55 kw
coolant motor 0,09 kw
convoyeur motor 0,37 kw
material feeding height 605 mm
lenght 2050 mm
width 1100 mm
height 1420 mm
weight 900 kg
