Contact Supplierwe are offering semi automatic bandsaw machine.
model properties :
facility usage bunu user friendly
automatic hydraulic pressing with button control
pressure indicator for band tension
warning for out or order and display at screen
showing the cutting material number
automatic stop at the number of cut that wanted
automatic stop when band brake off
high quality electric system works without problem
opportunity of choosing circuit during the work
opportunity of choosing circuit between ( 0 mtmin - 50 mtmin )
possibility to control the cutting speed
cover switch for safety
back driver feeding with roll

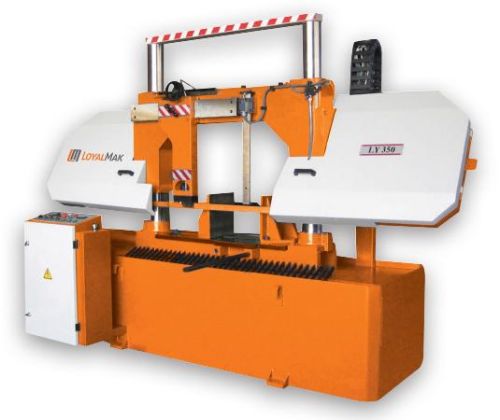

semi automatic band saw machine ly 350
technical specifications
capacity 90 degrees mm
350 mm
350 mm
350 x 350 mm
capacity 45 degrees mm
210 mm
210 mm
210 x 350 mm
bandsaw blade lenght 5800 x 34 x 1,1 mm
coolant tank capacity 30 lt
hydraulic tank capacity 25 lt
cutting speed 20 - 100 mmin
main motor 2,2 kw
hydraulic motor 1,5 kw
coolant motor 0,09 kw
convoyeur motor 0,37 kw
material feeding height 665 mm
lenght 2750 mm
width 1530 mm
height 1730 mm
weight 2050 kg
