Contact SupplierWe are offering semi automatic bandsaw machine with turn table.
Model properties :
facility usage bunu user friendly
automatic hydraulic pressing with button control
pressure indicator for band tension
warning for out or order and display at screen
showing the cutting material number
high quality electric system works without problem
opportunity of choosing circuit during the work
opportunity of choosing circuit between ( 0 mtmin - 50 mtmin )
possibility to control the cutting speed
cover switch for safety
back driver feeding with roll

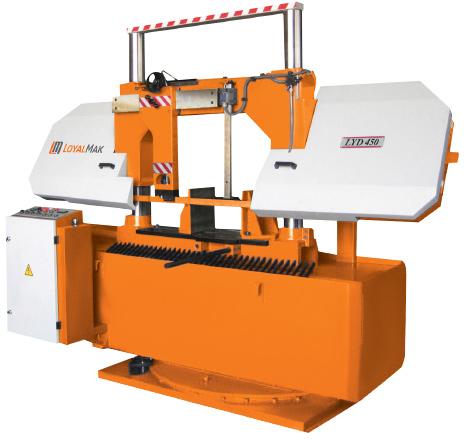

semi automatic band saw machine with turn table lyd 450
technical specifications
capacity 90 degrees mm
450 mm
450 mm
450 x 450 mm
capacity 45 degrees mm
290 mm
290 mm
290 x 450 mm
bandsaw blade lenght 6000 x 34 x 1,1 mm
coolant tank capacity 30 lt
hydraulic tank capacity 25 lt
cutting speed 20 - 100 mmin
main motor 2,2 kw
hydraulic motor 1,5 kw
coolant motor 0,09 kw
convoyeur motor 0,37 kw
material feeding height 665 mm
lenght 2850 mm
width 1530 mm
height 1930 mm
weight 2200 kg
