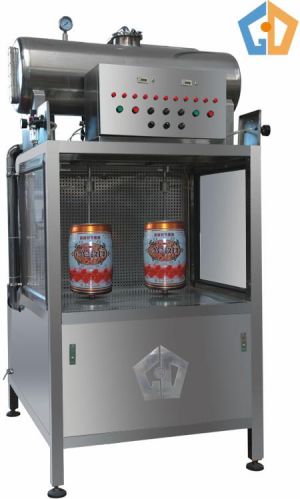

Contact SupplierWe are offering semi automatic equipment, 5l cans aseptic filling machine. 1. The main frame or
the machine includes frame , the elevtrical control system , solenoid pilot actuated value , pneumatic componets , membrane filter fan, ultravidet lamp, systems back to components .
2. Characteristics
this machine is specially used for filling 5l pop can .
The control unit adopts siemens small plc for controlling the whole process .
This machine can be used aseptic filling in the condition sterilized by ultravidet lamp .
The machine fills the barrel in the way of vacumm-pumping and co2 pressure preparation .
3. main technical parameter
size of plate form 960mm, 800mm
height of plate form 800mm
size of the machine 1000mm, 1300mm, 1530mm
production capacity 50 ~ 70 keg per hour
pressure of the 0.2------0.3mpa
p ressure of the air 0.6------0.7 mpa
pressure of the co2 0.2------0.3 mpa
pressure of the cylinder 0.3------0.5 mpa
voltage of the electricity ac220v 50hz
